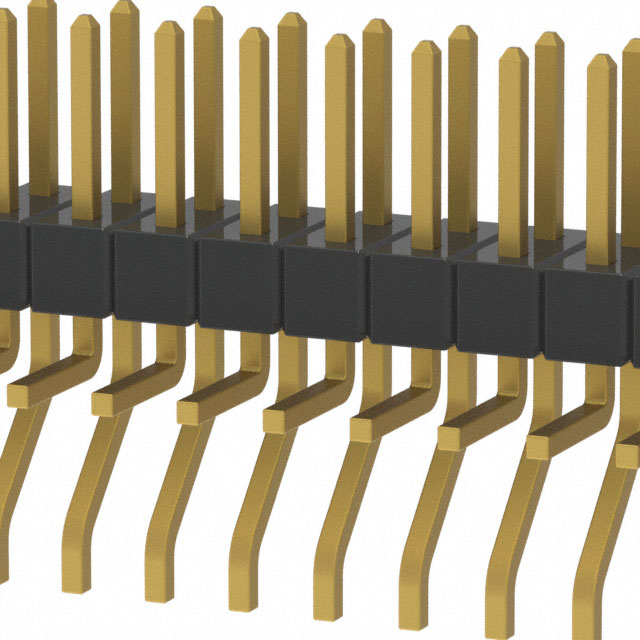

MMT-126-02-H-MT

Active

Samtec Inc.

CONN HEADER SMD R/A 52POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MMT-126-02-H-MT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	4.45 mm
Contact Length - Mating	0.175 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Positions	52
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

MMT-126 Series

Part	Features	Termination	Contact Material	Contact Finish - Post	Shrouding	Mounting Type	Contact Shape	Fastening Type	Insulation Material	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Insulation Color	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Insulation Height [custom]	Insulation Height [custom]	Number of Rows	Connector Type	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Insulation Height	Insulation Height
Samtec Inc. MMT-126-01-T-DH-P	Pick and Place	Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	105 ░C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable
Samtec Inc. MMT-126-01-T-DH-K-TR	Pick and Place	Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	105 ░C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable
Samtec Inc. MMT-126-02-H-DH		Solder	Phosphor Bronze	Gold	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	4.45 mm	0.175 in	125 °C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable	30 Áin	0.76 Ám	3 µin	0.076 µm	Gold
Samtec Inc. MMT-126-01-S-MT-P	Pick and Place	Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle Through Hole	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	125 °C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable	30 Áin	0.76 Ám			Gold
Samtec Inc. MMT-126-01-L-DH-P	Pick and Place	Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	125 °C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable	10 çin	0.25 çm			Gold
Samtec Inc. MMT-126-01-S-DH-P	Pick and Place	Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	125 °C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable	30 Áin	0.76 Ám			Gold
Samtec Inc. MMT-126-01-S-SH		Solder	Phosphor Bronze	Tin	Unshrouded	Surface Mount Right Angle	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	3.2 mm	0.126 "	125 °C	-55 °C	26	Black			Male Pin			1	Header	0.079 in	2 mm	Board to Board Cable	30 Áin	0.76 Ám			Gold	0.079 in	2 mm
Samtec Inc. MMT-126-02-H-MT		Solder	Phosphor Bronze	Gold	Unshrouded	Surface Mount Right Angle Through Hole	Square	Push-Pull	Liquid Crystal Polymer (LCP)	3 A	UL94 V-0	All	4.45 mm	0.175 in	125 °C	-55 °C	52	Black	0.079 in	2 mm	Male Pin	0.157 in	4 mm	2	Header	0.079 in	2 mm	Board to Board Cable	30 Áin	0.76 Ám	3 µin	0.076 µm	Gold
Samtec Inc. MMT-126-01-T-SH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 18.83

Description

General part information

MMT-126 Series

Connector Header Surface Mount, Right Angle; Through Hole 52 position 0.079" (2.00mm)
