S7B-PH-K-S

Active

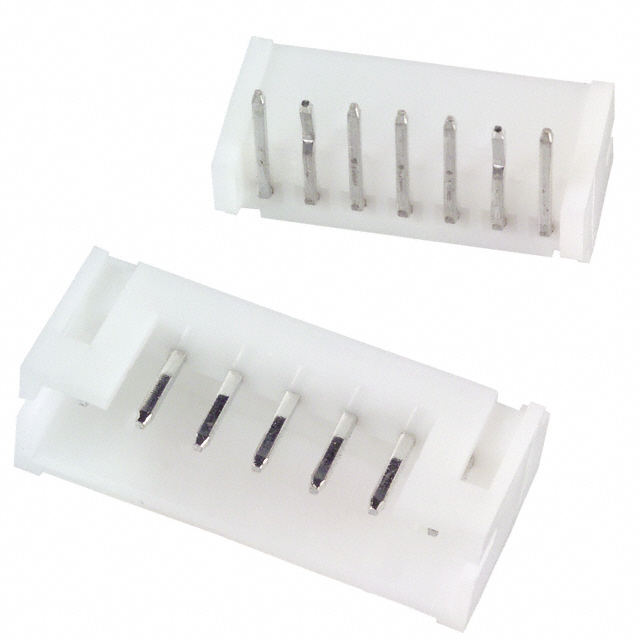

CONN HEADER R/A 7POS 2MM

Active

CONN HEADER R/A 7POS 2MM

Description

General part information

Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm)

Parameters and characteristics for this part

Specification	S7B-PH-K-S

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Post	0.134 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.189 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Pitch - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Press-Fit, Solder
Voltage Rating	100 VAC

Part	Fastening Type	Contact Material	Number of Rows	Connector Type	Insulation Material	Insulation Height	Contact Shape	Voltage Rating	Termination	Contact Finish - Post	Pitch - Mating	Number of Positions Loaded	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Style	Contact Length - Post	Current Rating	Shrouding	Material Flammability Rating	Contact Type	Contact Finish - Mating	Mounting Type	Insulation Color	Contact Length - Mating
JST Sales America Inc. S7B-PH-KL	Detent Lock	Copper Alloy	1	Header	Nylon 6/6 Polyamide (PA66)	0.189 in	Square	100 VAC	Press-Fit Solder	Tin	0.079 in	All	7	85 °C	-25 °C	Board Cable/Wire	0.134 in	2 A	Shrouded - 4 Wall	UL94 V-0	Male Pin	Tin	Right Angle Through Hole	Gray
JST Sales America Inc. S7B-PH-K-S	Detent Lock	Brass	1	Header	Nylon 6/6 Polyamide (PA66)	0.189 in	Square	100 VAC	Press-Fit Solder	Tin	0.079 in	All	7	85 °C	-25 °C	Board Cable/Wire	0.134 in	2 A	Shrouded - 4 Wall	UL94 V-0	Male Pin	Tin	Right Angle Through Hole	Natural	0.13 in
