TS7808CZ C0

Obsolete

Taiwan Semiconductor Corporation

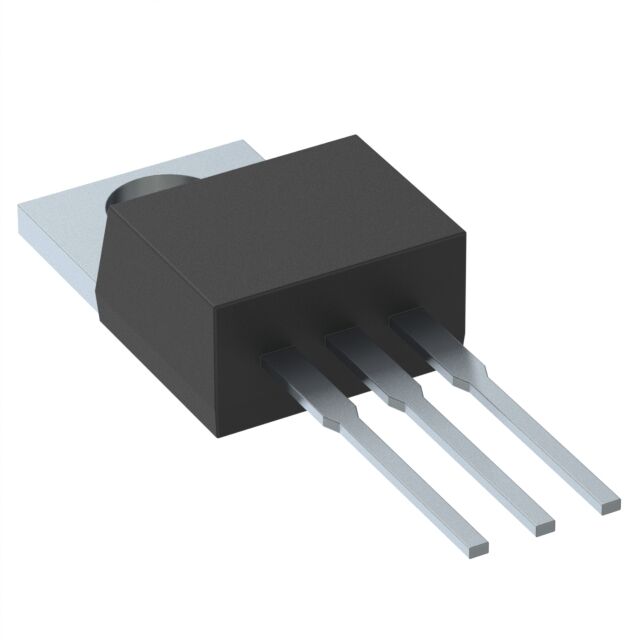

IC REG LINEAR 8V 1A TO220

Search across all available documentation for this part.

Obsolete

Taiwan Semiconductor Corporation

IC REG LINEAR 8V 1A TO220

Technical Specifications

Parameters and characteristics for this part

Part	Output Type	Mounting Type	Current - Quiescent (Iq)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage Dropout (Max) [Max]	Current - Output	Supplier Device Package	Current - Supply (Max) [Max]	Output Configuration	Protection Features	Number of Regulators	Voltage - Input (Max) [Max] [custom]	PSRR	Voltage - Output (Min/Fixed)
Taiwan Semiconductor Corporation TS7808CZ C0G	1.81 mOhm	Through Hole	8 mA	0 °C	125 ¯C	TO-220-3	2 V	1 A	TO-220	500 µA	Positive	Over Temperature	1	35 V	72 dB	8 V
Taiwan Semiconductor Corporation TS7808CZ C0	1.81 mOhm	Through Hole	8 mA	0 °C	125 ¯C	TO-220-3	2 V	1 A	TO-220		Positive		1	35 V	72 dB	8 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-220

Technical documentation and resources

No documents available
