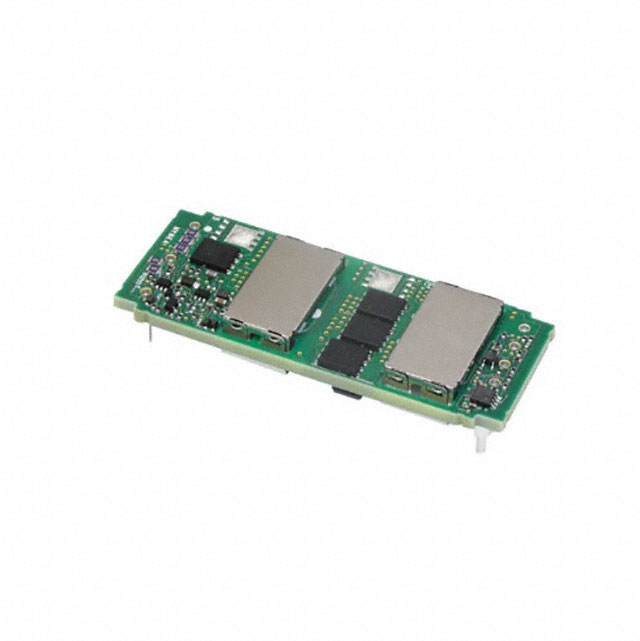

MYBEB00520AZT

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 100W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 100W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 5V 100W

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Applications	Efficiency	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Max) [Max]	Package / Case	Voltage - Isolation	Voltage - Output 1	Power (Watts)
Murata Power Solutions Inc. MYBEB00520AZT	1	85 °C	-40 °C	20 A	36 V	Eighth Brick	ITE (Commercial)	93 %	Isolated Module	Through Hole	2 in	50.8 mm	0.9 "	22.8 mm	0.37 in	9.4 mm	75 V	Eighth Brick	1.5 kV	5 V	100 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 20A 36V - 75V Input

Technical documentation and resources

No documents available
