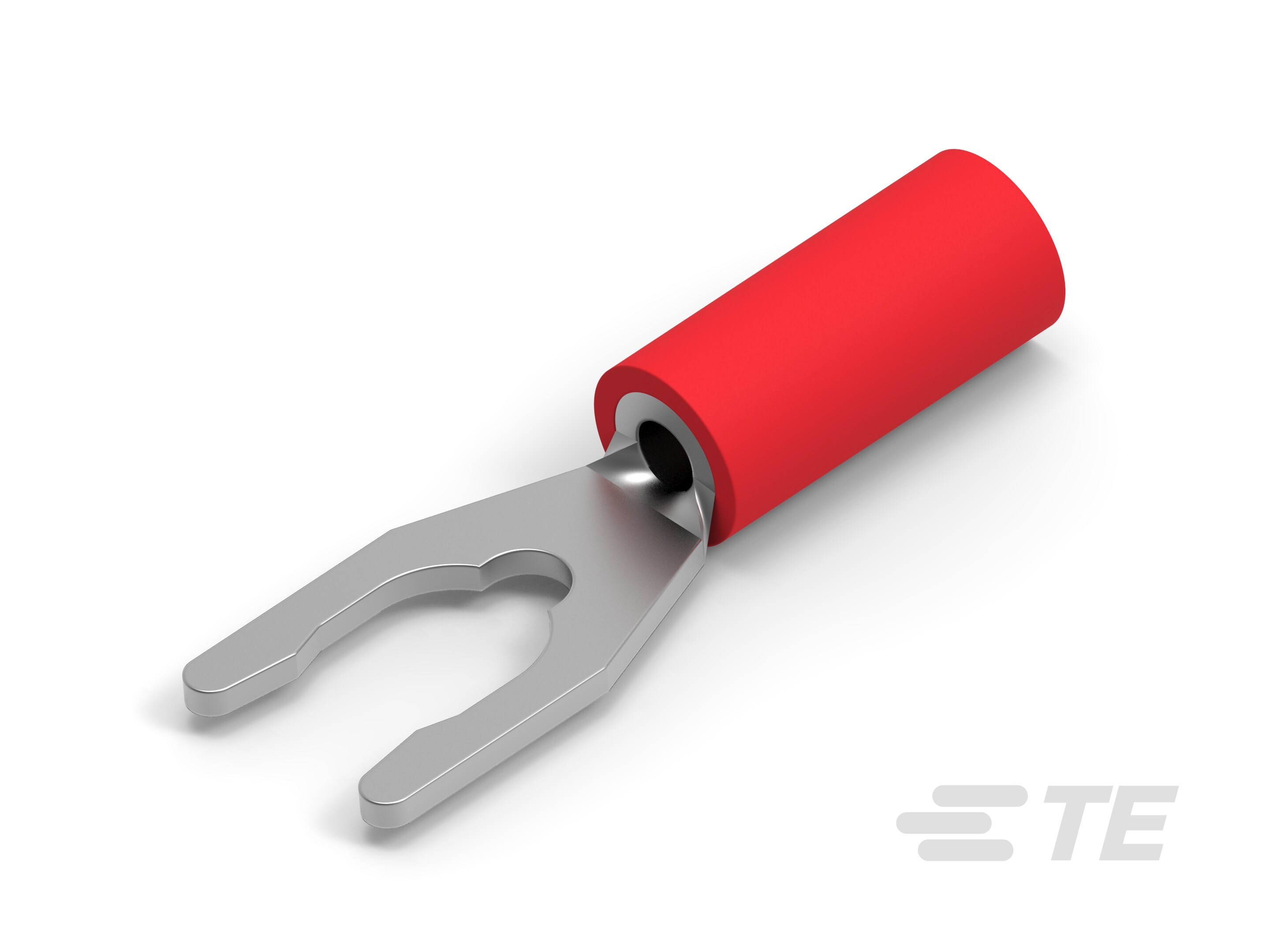

Specification	53242-6

Color	Red
Contact Finish	Tin
Contact Material	Brass
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.2 in
Insulation Diameter (Min)	0.15 in
Length - Overall	0.969 in
Length - Ring Center to Termination	0.281 in
Length - Termination	0.465 in
Material - Insulation	PVC, Poly-Vinyl Chloride
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Snap, Spring
Termination	Crimp
Tongue Inside Opening	0.19 in
Width - Outer Edges	0.294 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

53242 Series

Part	Contact Finish	Width - Outer Edges	Contact Material	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Stud/Tab Size	Mounting Type	Terminal Type	Insulation	Termination	Length - Overall	Features	Length - Termination	Tongue Inside Opening	Insulation Diameter (Min)	Insulation Diameter (Max)	Material - Insulation	Length - Ring Center to Termination
TE Connectivity AMP Connectors 53242-2	Tin	0.294 in	Brass	16 AWG	22 AWG	Red	10 Stud	Free Hanging (In-Line)	Snap Spring	Insulated	Crimp	0.92 in	Serrated Termination	0.416 in	0.19 in	0.105 in	0.14 in	Poly-Vinyl Chloride PVC	0.281 in
TE Connectivity AMP Connectors 53242-1	Tin	0.294 in	Brass	16 AWG	22 AWG	Red	10 Stud	Free Hanging (In-Line)	Snap Spring	Insulated	Crimp	0.92 in	Serrated Termination	0.416 in	0.19 in	0.105 in	0.14 in	Poly-Vinyl Chloride PVC	0.281 in
TE Connectivity AMP Connectors 53242-6	Tin	0.294 in	Brass	16 AWG	22 AWG	Red	10 Stud	Free Hanging (In-Line)	Snap Spring	Insulated	Crimp	0.969 in	Serrated Termination	0.465 in	0.19 in	0.15 in	0.2 in	Poly-Vinyl Chloride PVC	0.281 in
