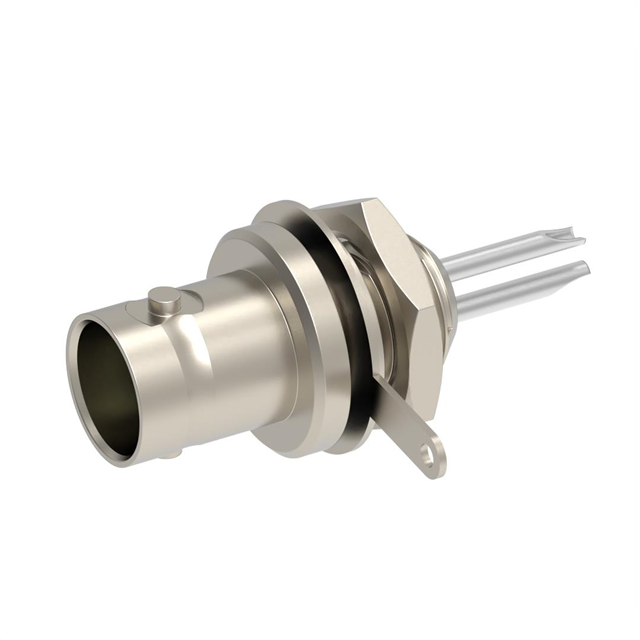

R605550000

Active

Radiall USA, Inc.

CONN BNC RECEPT PNLMT SOLDER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

CONN BNC RECEPT PNLMT SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Number of Ports	Housing Color	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Includes	Dielectric Material	Mounting Feature	Contact Termination	Voltage Rating	Connector Type	Mating Cycles	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Body Finish	Shield Termination	Body Material	Impedance	Connector Style
Radiall USA, Inc. R605550000	1	Silver	500 MHz	Silver	Beryllium Copper	1 Connector 1 Lockwasher 1 Nut	Polyamide (PA66) Nylon 6/6	Bulkhead - Rear Side Nut	Solder Cup	500 V	Female Socket Receptacle	500	100 °C	-40 °C	Bayonet Lock	Nickel	Solder	Brass	50 Ohms
Radiall USA, Inc. R605550020	1	Silver	500 MHz	Gold	Beryllium Copper			Bulkhead - Rear Side Nut	Solder Cup	500 V	Female Socket Receptacle	500	100 °C	-40 °C	Bayonet Lock	Nickel	Solder	Brass	80 Ohms	BR2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
