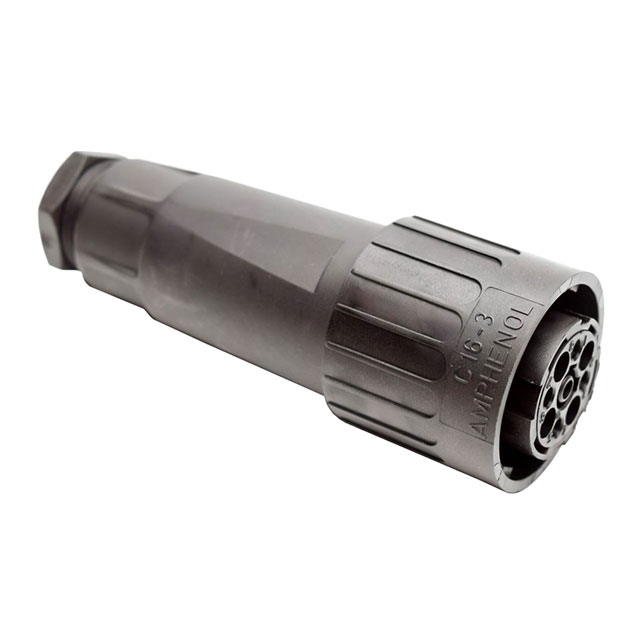

C01610E0080031

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 9POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSNG FMALE 9POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610E0080031

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.6 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9, 8
Number of Positions [custom]	PE
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

CONN PLUG HSNG FMALE 9POS INLINE

Part	Mounting Type	Type	Number of Positions	Number of Positions [custom]	Orientation	Shell Size - Insert	Includes	Shielding	Contact Shape	Housing Color	Features	Fastening Type	Shell Material	Contact Type	Note	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Ingress Protection	Contact Size
Amphenol Tuchel Industrial C01610E0080031	Free Hanging (In-Line)	For Female Sockets	8, 9	PE	N	1	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	Unshielded	Circular	Black	Backshell, Cable Clamp, Coupling Nut	Bayonet Lock	Polyamide (PA66), Nylon 6/6	Crimp	Contacts Not Included	125 °C	-40 °C	UL94 V-0	Plug Housing	IP65 - Dust Tight, Water Resistant	1.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 25.37

General part information

9 (8 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
