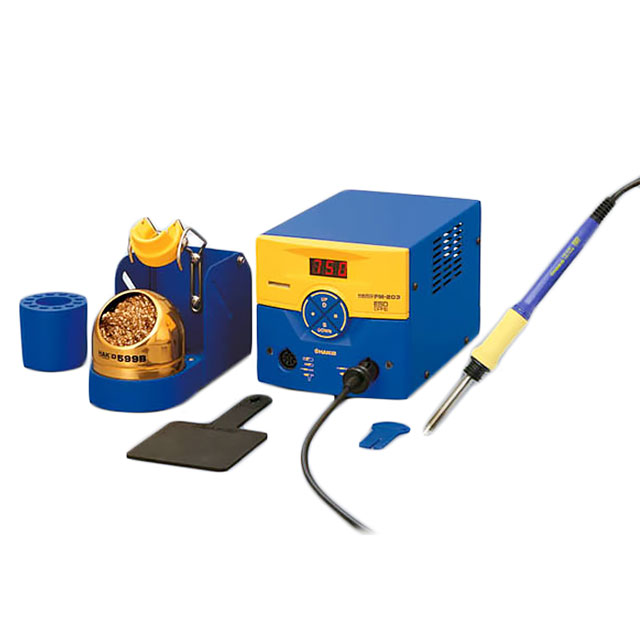

FM203-HD
ActiveAmerican Hakko Products, Inc.
SOLDERING STATION 140W 2 CH 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FM203-HD
ActiveAmerican Hakko Products, Inc.
SOLDERING STATION 140W 2 CH 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FM203-HD | FM203 Series |
|---|---|---|
| Base Unit | FM-203 | FM-203 |
| Control/Display Type | Digital | Digital |
| Features | Sleep Mode, LED in Handpiece, ESD Safe, Low Temperature Alarm, Auto Off, Temperature Lockout | Sleep Mode, LED in Handpiece, ESD Safe, Low Temperature Alarm, Auto Off, Temperature Lockout |
| Includes | Tip Tray, Key Card, Heat Resistant Pad, Iron Holder | Tip Tray, Key Card, Heat Resistant Pad, Iron Holder |
| Number of Channels [custom] | 2 | 2 |
| Plug Type | NEMA 5-15P | NEMA 5-15P |
| Supplied Iron, Tweezer, Handle | FM-2030-01 | FM2027-06, FM-2027-03, FM-2030-01, FM-2027-06 |
| Supplied Tips/Nozzles | Sold Separately | Sold Separately |
| Tip Cleaner | Scouring Pad | Scouring Pad |
| Type | Soldering | Soldering |
| Voltage - Input | 120 V | 120 V |
| Voltage - Output | 24 V | 24 V |
| Wattage | 140 W | 140 W |
| Workstand | FH200-01 | FH200-01 (2), FH200-01 |
FM203 Series
SOLDERING STATION 140W 2 CH 120V
| Part | Base Unit | Control/Display Type | Plug Type | Features | Workstand | Number of Channels [custom] | Includes | Wattage | Supplied Iron, Tweezer, Handle | Supplied Tips/Nozzles | Type | Tip Cleaner | Voltage - Input | Voltage - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Hakko Products, Inc. FM203-DP | FM-203 | Digital | NEMA 5-15P | Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout | FH200-01 (2) | 2 | Heat Resistant Pad, Iron Holder, Key Card, Tip Tray | 140 W | FM-2027-03, FM2027-06 | Sold Separately | Soldering | Scouring Pad | 120 V | 24 V |
American Hakko Products, Inc. FM203-HD | FM-203 | Digital | NEMA 5-15P | Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout | FH200-01 | 2 | Heat Resistant Pad, Iron Holder, Key Card, Tip Tray | 140 W | FM-2030-01 | Sold Separately | Soldering | Scouring Pad | 120 V | 24 V |
American Hakko Products, Inc. FM203-01 | FM-203 | Digital | NEMA 5-15P | Auto Off, ESD Safe, LED in Handpiece, Low Temperature Alarm, Sleep Mode, Temperature Lockout | FH200-01 | 2 | Heat Resistant Pad, Iron Holder, Key Card, Tip Tray | 140 W | FM-2027-06 | Sold Separately | Soldering | Scouring Pad | 120 V | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 643.55 | |
| 5 | $ 612.68 | |||
Description
General part information
FM203 Series
SOLDERING STATION 140W 2 CH 120V
Documents
Technical documentation and resources
