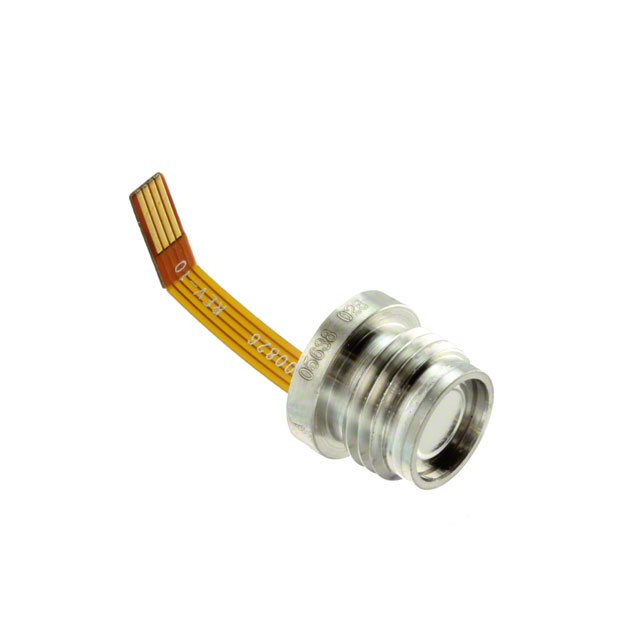

89BSD-028BA-A
ActiveTE Connectivity Measurement Specialties
SENSOR 406.11PSIA 5/16" 24BIT
Deep-Dive with AI
Search across all available documentation for this part.
89BSD-028BA-A
ActiveTE Connectivity Measurement Specialties
SENSOR 406.11PSIA 5/16" 24BIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 89BSD-028BA-A |
|---|---|
| Accuracy | 0.3 % |
| Applications | Board Mount |
| Maximum Pressure [Max] | 5600 kPa |
| Maximum Pressure [Max] | 812.21 PSI |
| Operating Pressure | 406.11 PSI |
| Operating Pressure | 28 bar |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 24 b |
| Output Type | I2C |
| Package / Case | Cylinder |
| Port Size | Male, UNEF |
| Port Size | 0.3125 " |
| Port Size | 7.94 mm |
| Port Style | Threaded |
| Termination Style | Cable with Connector |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 159.54 | |
| 16 | $ 146.25 | |||
Description
General part information
89BSD Series
Pressure Sensor 406.11PSI (2800kPa) Absolute Male - 5/16" (7.94mm) UNEF 24 b Cylinder
Documents
Technical documentation and resources
No documents available
