PF1304 BK003

Active

ALPHA WIRE

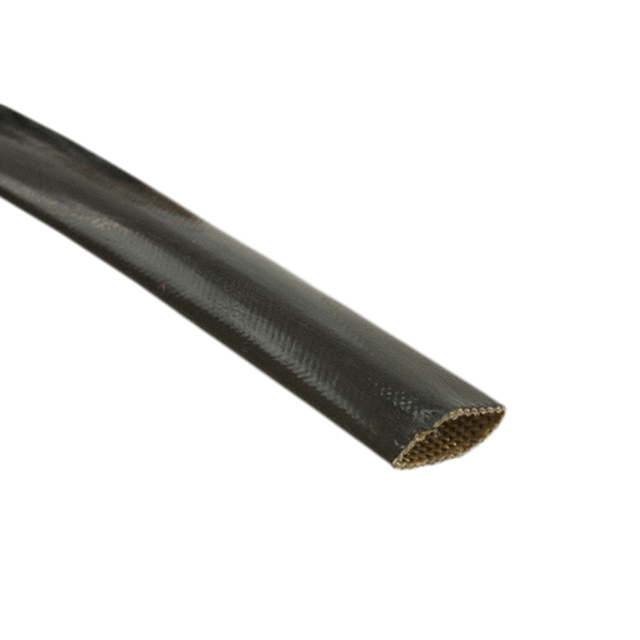

SLEEVING 0.204" ID FBRGLASS 250'

Search across all available documentation for this part.

Active

ALPHA WIRE

SLEEVING 0.204" ID FBRGLASS 250'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PF1304 BK003	PF1304 Series

Abrasion Protection	Abrasion Resistant, Fray Resistant	Abrasion Resistant, Fray Resistant
Color	Black	Black
Diameter - Inside [diameter]	5.18 mm	5.18 mm
Diameter - Inside [diameter]	0.204 in	0.204 in
Environment Protection	Corrosion Resistant	Corrosion Resistant
Heat Protection	Heat Resistant	Heat Resistant
Length	-	100 ft
Length	-	30.48 m
Length [x]	76.2 m	76.2 m
Length [x]	250 ft	250 ft
Liquid Protection	Oil Resistant	Oil Resistant
Material	Fiberglass, PVC Coated	Fiberglass, PVC Coated
Material Flammability Rating	UL VW-1	UL VW-1
Operating Temperature [Max]	130 °C	130 °C
Operating Temperature [Min]	-20 C	-20 C
Type	Sleeving, Insulated	Sleeving, Insulated
Type Attributes	Convoluted - Braided	Convoluted - Braided
Wall Thickness [custom]	0.51 mm	0.51 mm
Wall Thickness [custom]	0.02 in	0.02 in

SLEEVING 0.204" ID FBRGLASS 250'

Part	Abrasion Protection	Operating Temperature [Min]	Operating Temperature [Max]	Environment Protection	Type Attributes	Material	Type	Wall Thickness [custom]	Wall Thickness [custom]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Heat Protection	Liquid Protection	Length [x]	Length [x]	Material Flammability Rating	Color	Length	Length
ALPHA WIRE PF1304 BK003	Abrasion Resistant, Fray Resistant	-20 C	130 °C	Corrosion Resistant	Convoluted - Braided	Fiberglass, PVC Coated	Sleeving, Insulated	0.51 mm	0.02 in	5.18 mm	0.204 in	Heat Resistant	Oil Resistant	76.2 m	250 ft	UL VW-1	Black
ALPHA WIRE PF1304 BK005	Abrasion Resistant, Fray Resistant	-20 C	130 °C	Corrosion Resistant	Convoluted - Braided	Fiberglass, PVC Coated	Sleeving, Insulated	0.51 mm	0.02 in	5.18 mm	0.204 in	Heat Resistant	Oil Resistant			UL VW-1	Black	100 ft	30.48 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Fiberglass, PVC Coated Convoluted - Braided Sleeving, Insulated 0.204" (5.18mm) 250' (76.20m)
