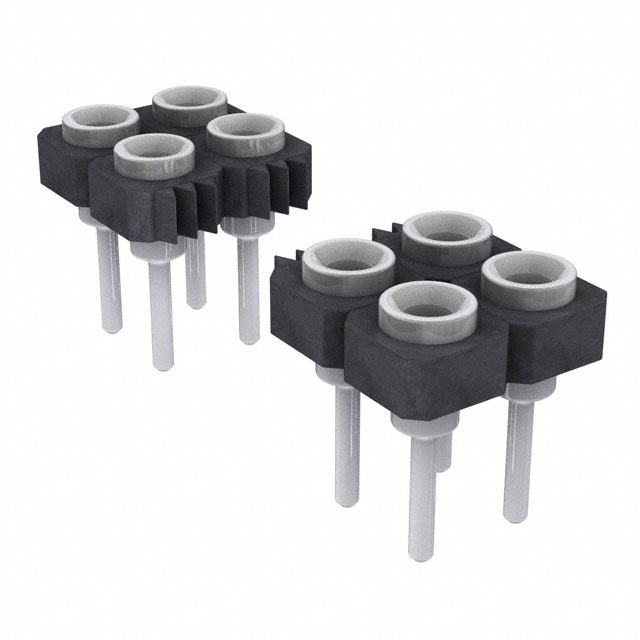

SDL-106-TT-11

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDL-106-TT-11

Active

Samtec Inc.

CONN RCPT 12POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDL-106-TT-11

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.108 in
Contact Length - Post	2.75 mm
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.132 in
Insulation Height	3.35 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

SDL-106 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Connector Type	Insulation Color	Insulation Height [z]	Insulation Height [z]	Number of Rows	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Shape	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Mounting Type	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SDL-106-T-12	30 Áin	0.76 Ám	Beryllium Copper	Receptacle	Black	0.095 in	2.41 mm	2	Female Socket	2.54 mm	0.1 in	Gold	Circular	2.41 mm	0.095 in	12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Push-Pull
Samtec Inc. SDL-106-TT-10			Beryllium Copper	Receptacle	Black			2	Female Socket	2.54 mm	0.1 in		Circular			12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	105 ░C	Push-Pull	Tin	0.108 in	2.75 mm	3.1 mm	0.122 in
Samtec Inc. SDL-106-T-10	30 Áin	0.76 Ám	Beryllium Copper	Receptacle	Black			2	Female Socket	2.54 mm	0.1 in	Gold	Circular			12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Push-Pull		0.108 in	2.75 mm	3.1 mm	0.122 in
Samtec Inc. SDL-106-T-11	30 Áin	0.76 Ám	Beryllium Copper	Receptacle	Black			2	Female Socket	2.54 mm	0.1 in	Gold	Circular			12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Push-Pull		0.108 in	2.75 mm	3.35 mm	0.132 in
Samtec Inc. SDL-106-TT-12			Beryllium Copper	Receptacle	Black	0.095 in	2.41 mm	2	Female Socket	2.54 mm	0.1 in		Circular	2.41 mm	0.095 in	12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	105 ░C	Push-Pull	Tin
Samtec Inc. SDL-106-G-12	30 Áin	0.76 Ám	Beryllium Copper	Receptacle	Black	0.095 in	2.41 mm	2	Female Socket	2.54 mm	0.1 in	Gold	Circular	2.41 mm	0.095 in	12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Push-Pull	Gold					10 çin	0.25 çm
Samtec Inc. SDL-106-G-10	30 Áin	0.76 Ám	Beryllium Copper	Receptacle	Black			2	Female Socket	2.54 mm	0.1 in	Gold	Circular			12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	125 °C	Push-Pull	Gold	0.108 in	2.75 mm	3.1 mm	0.122 in	10 çin	0.25 çm
Samtec Inc. SDL-106-TT-11			Beryllium Copper	Receptacle	Black			2	Female Socket	2.54 mm	0.1 in		Circular			12	Through Hole	Solder	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	-55 °C	105 ░C	Push-Pull	Tin	0.108 in	2.75 mm	3.35 mm	0.132 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.21
		10	$ 1.92
		100	$ 1.72
		500	$ 1.43
		1000	$ 1.23
		5000	$ 1.09

Description

General part information

SDL-106 Series

12 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
