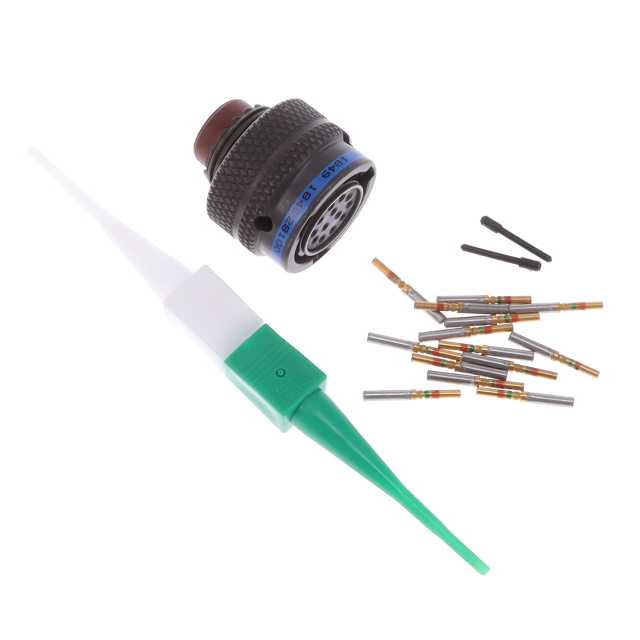

MS27473T10B35S

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN PLUG FMALE 13POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	MS27473T10B35S

Applications	Military, Aviation
Color	Olive Drab
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	13
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series II
Shell Material	Aluminum
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	10
Shielding	Unshielded
Termination	Crimp

Part	Applications	Grade	Color	Features	Orientation	Shielding	Number of Positions	Contact Material	Qualification	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Backshell Material, Plating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Connector Type	Primary Material	Contact Finish - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Ingress Protection	Shell Material	Insert Material
Amphenol Aerospace Operations MS27473T10B35PA-UWBSB1	Aviation Marine Military	Military	Olive Drab	Backshell Coupling Nut Shielding Device Shrink Boot	A	Shielded	13	Copper Alloy	MIL-DTL-38999 Series II	1.27 µm	50 µin	Bayonet Lock	Metal	35	10	Male Pins Plug	Metal	Gold	Free Hanging (In-Line)	-65 ░C	347 °F	Crimp	Environment Resistant	Aluminum Alloy
Amphenol Aerospace Operations MS27473T10B98P-UWBSB1	Aviation Marine Military	Military	Olive Drab	Backshell Coupling Nut Shielding Device Shrink Boot	N	Shielded	6	Copper Alloy	MIL-DTL-38999 Series II	1.27 µm	50 µin	Bayonet Lock	Metal	98	10	Male Pins Plug	Metal	Gold	Free Hanging (In-Line)	-65 ░C	347 °F	Crimp	Environment Resistant	Aluminum Alloy
Amphenol Aerospace Operations MS27473T10B35S	Aviation Military	Military	Olive Drab	Coupling Nut	N	Unshielded	13	Copper Alloy	MIL-DTL-38999 Series II	1.27 µm	50 µin	Bayonet Lock		35	10	Female Sockets Plug	Metal	Gold	Free Hanging (In-Line)	-65 ░C	347 °F	Crimp	Environment Resistant	Aluminum	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

13 Position Circular Connector Plug, Female Sockets Crimp
