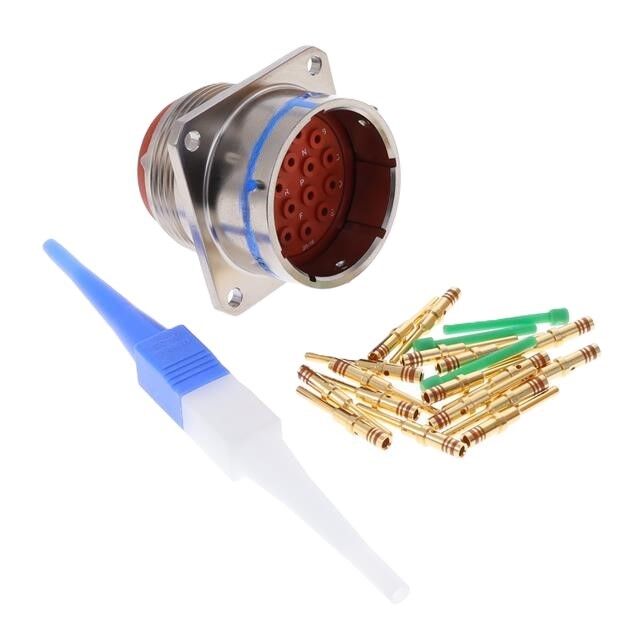

D38999/26WE26HC

Active

Corsair

D38999/26WE26HC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WE26HC

Active

Corsair

D38999/26WE26HC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2	$ 128.92
		10	$ 118.61
		50	$ 109.12
		100	$ 100.39
		500	$ 92.36

Description

General part information

D38999/26WE Series

26 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	D38999/26WE26HC	D38999/26WE Series

	-	-
Applications	Aerospace, Aviation, Military	Aerospace, Aviation, Military, Marine
Color	Olive Drab	Olive Drab
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	16 - 20
Contact Size	-	2 - 21
Contact Size	-	16
Contact Type	-	Crimp
Current Rating (Amps)	-	5 - 45 A
Features	Self Locking	Coupling Nut, Self Locking
Grade	Military	Military
Housing Color	-	Olive Drab
Ingress Protection	Weathertight	IP67 - Dust Tight, Waterproof, Weathertight, Environment Resistant
Insert Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	26	8 - 26
Number of Positions	-	38
Number of Positions	-	1
Operating Temperature [Max]	150 °C	150 - 347 °F
Operating Temperature [Min]	-65 ░C	-65 ░C
Orientation	C	A, C, N
Primary Material	-	Metal
Qualification	MIL-DTL-38999 Series II	MIL-DTL-38999 Series II, MIL-DTL-38999 Series III
Shell Finish	-	Olive Drab Cadmium, Cadmium
Shell Material	-	Aluminum
Shell Size - Insert	-	17-8, 17-2
Shell Size - Insert [Max]	26	26 - 99
Shell Size - Insert [Min]	17	17
Shell Size, MIL	E	E
Shielding	Shielded	Shielded
Termination	Crimp	Crimp
Type	-	For Male Pins
Voltage Rating	500 VAC	500 VAC

D38999/26WE Series

D38999/26WE8HA

Part	Mounting Type	Termination	Orientation	Shielding	Shell Size - Insert	Applications	Connector Type	Number of Positions	Color	Shell Size, MIL	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Material	Ingress Protection	Shell Material	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Current Rating (Amps)	Primary Material	Insert Material	Voltage Rating	Material Flammability Rating	Qualification	Grade	Number of Positions [x]	Number of Positions [custom]	Contact Size	Contact Size	Housing Color	Contact Type	Contact Shape	Type	Note	Contact Size
Corsair D38999/26WE8HA	Free Hanging (In-Line)	Crimp	A	Shielded	17-8	Aerospace, Aviation, Military	Male Pins, Plug	8	Olive Drab	E	Gold
Corsair D38999/26WE8HC	Free Hanging (In-Line)	Crimp	C	Shielded	17-8	Aviation, Marine, Military	Male Pins, Plug	8	Olive Drab	E	Gold
Corsair D38999/26WE26PN	Free Hanging (In-Line)	Crimp	N	Shielded		Aviation, Marine, Military	Male Pins, Plug	26	Olive Drab	E	Gold	-65 ░C	347 °F	17	26	Copper Alloy	IP67 - Dust Tight, Waterproof	Aluminum	Coupling Nut	1.27 µm	50 µin	Olive Drab Cadmium	7.5 A	Metal	Thermoplastic
Corsair D38999/26WE26HC	Free Hanging (In-Line)	Crimp	C	Shielded		Aerospace, Aviation, Military	Male Pins, Plug	26	Olive Drab	E	Gold	-65 ░C	150 °C	17	26	Copper Alloy	Weathertight		Self Locking						Thermoplastic	500 VAC	UL94 V-0	MIL-DTL-38999 Series II	Military
Corsair D38999/26WE2SC	Free Hanging (In-Line)	Crimp	C	Shielded	17-2	Aviation, Marine, Military	Female Sockets, Plug		Olive Drab	E	Gold	-65 ░C	347 °F			Copper Alloy	IP67 - Dust Tight, Waterproof	Aluminum	Coupling Nut	1.27 µm	50 µin	Olive Drab Cadmium	5 A, 45 A	Metal	Thermoplastic					38	1
Corsair D38999/26WE99PC	Free Hanging (In-Line)	Crimp	C	Shielded		Aviation, Marine, Military	Male Pins, Plug	23	Olive Drab	E	Gold	-65 ░C	347 °F	17	99	Copper Alloy	IP67 - Dust Tight, Waterproof	Aluminum	Coupling Nut	1.27 µm	50 µin	Olive Drab Cadmium	7.5 A, 13 A	Metal	Thermoplastic
Corsair D38999/26WE99PAL	Free Hanging (In-Line)		A	Shielded			Plug Housing	23		E		-65 ░C	347 °F	17	99		Environment Resistant	Aluminum	Coupling Nut			Cadmium			Thermoplastic			MIL-DTL-38999 Series III	Military			16, 20	2, 21	Olive Drab	Crimp	Circular	For Male Pins	Contacts Not Included
Corsair D38999/26WE8PAL	Free Hanging (In-Line)		A	Shielded	17-8		Plug Housing	8		E		-65 ░C	347 °F				Environment Resistant	Aluminum	Coupling Nut			Cadmium			Thermoplastic			MIL-DTL-38999 Series III	Military					Olive Drab	Crimp	Circular	For Male Pins	Contacts Not Included	16
Corsair D38999/26WE2SCL
Corsair D38999/26WE99PCL	Free Hanging (In-Line)		C	Shielded			Plug Housing	23		E		-65 ░C	347 °F	17	99		Environment Resistant	Aluminum	Coupling Nut			Cadmium			Thermoplastic			MIL-DTL-38999 Series III	Military			16, 20	2, 21	Olive Drab	Crimp	Circular	For Male Pins	Contacts Not Included
