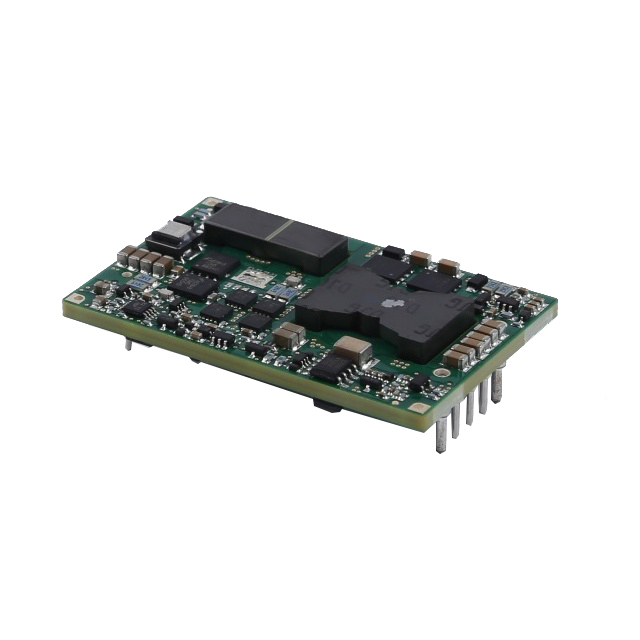

QPS3480N002N25W

Active

NetPower

DC DC CONVERTER 48V 96W

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 48V 96W

Technical Specifications

Parameters and characteristics for this part

Specification	QPS3480N002N25W

Applications	ITE (Commercial)
Current - Output (Max) [Max]	2 A
Efficiency	90.5 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	96 W
Size / Dimension [x]	2.28 in
Size / Dimension [x]	57.9 mm
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	10.4 mm
Size / Dimension [z]	0.41 "
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	48 V

DC DC CONVERTER 48V 96W

Part	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Output 1	Applications	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Features	Efficiency	Current - Output (Max) [Max]
NetPower QPS3480N002N25W	Quarter Brick	75 V	2250 VDC	1	85 °C	-40 °C	Through Hole	48 V	ITE (Commercial)	Isolated Module	10.4 mm	1.45 in	0.41 "	2.28 in	57.9 mm	36.8 mm	Quarter Brick	18 V	96 W	Adjustable Output, Remote On/Off, Remote Sense	90.5 %	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 81.20

General part information

Isolated Module DC DC Converter 1 Output 48V 2A 18V - 75V Input
