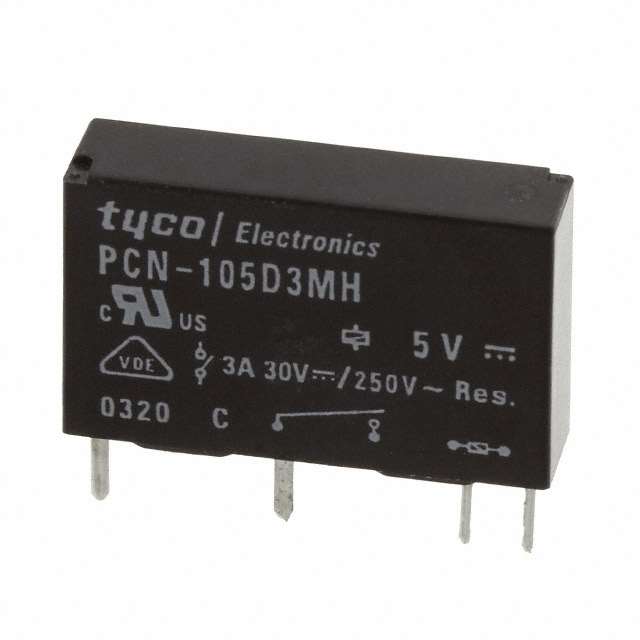

PCN-105D3MH
ActiveTE Connectivity Potter & Brumfield Relays
PCN-105D3MH 000
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCN-105D3MH
ActiveTE Connectivity Potter & Brumfield Relays
PCN-105D3MH 000
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCN-105D3MH |
|---|---|
| Approval Agency | CQC, VDE, cURus |
| Coil Current | 24 mA |
| Coil Resistance | 208 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 5 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching | 375 W, 831 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.5 VDC |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 277 VAC, 125 VDC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 2000 | $ 3.20 | |
Description
General part information
PCN-105 Series
General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
