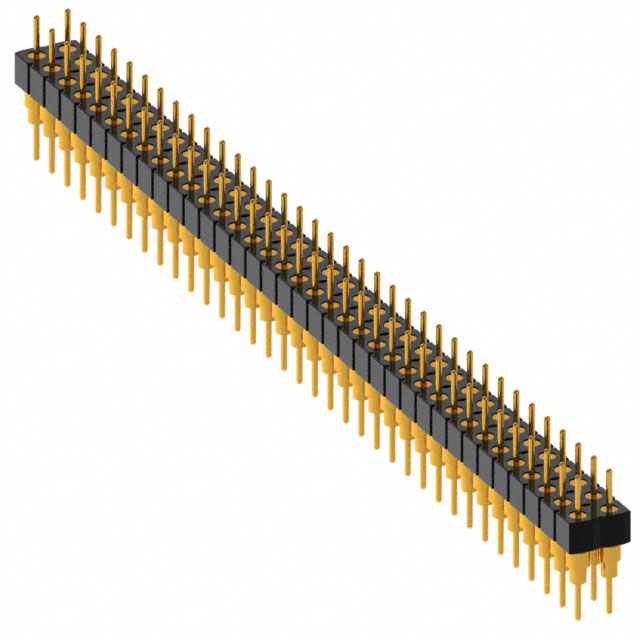

BBD-136-G-A

Active

Samtec Inc.

CONN HEADER VERT 72POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 72POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBD-136-G-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Nickel
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	5.35 mm
Insulation Height [z]	0.211 in
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	11.68 mm
Overall Contact Length	0.46 "
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder

Part	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Termination	Overall Contact Length	Overall Contact Length	Connector Type	Contact Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Contact Shape	Number of Positions	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Finish - Post	Shrouding	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Overall Contact Length
Samtec Inc. BBD-136-G-B	Gold	0.1 in	2.54 mm	Solder	14.86 mm	0.585 in	Header	Male Pin	Through Hole	2.54 mm	0.1 in	3.18 mm	0.125 in	Black	0.51 µm	20 µin	All	Circular	72	0.125 in	3.18 mm	-55 °C	125 °C	Polyester Glass Filled	Nickel	Unshrouded	Push-Pull	1.27 µm	50 µin	2	0.335 "	8.51 mm
Samtec Inc. BBD-136-G-D	Gold	0.1 in	2.54 mm	Solder			Header	Male Pin	Through Hole	2.54 mm	0.1 in	3.18 mm	0.125 in	Black	0.51 µm	20 µin	All	Circular	72	0.125 in	3.18 mm	-55 °C	125 °C	Polyester Glass Filled	Nickel	Unshrouded	Push-Pull	1.27 µm	50 µin	2	0.835 "	21.21 mm
Samtec Inc. BBD-136-G-A	Gold	0.1 in	2.54 mm	Solder		11.68 mm	Header	Male Pin	Through Hole	2.54 mm	0.1 in	3.18 mm	0.125 in	Black	0.51 µm	20 µin	All	Circular	72	0.125 in	3.18 mm	-55 °C	125 °C	Polyester Glass Filled	Nickel	Unshrouded	Push-Pull	1.27 µm	50 µin	2			5.35 mm	0.211 in	0.46 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 72 position 0.100" (2.54mm)
