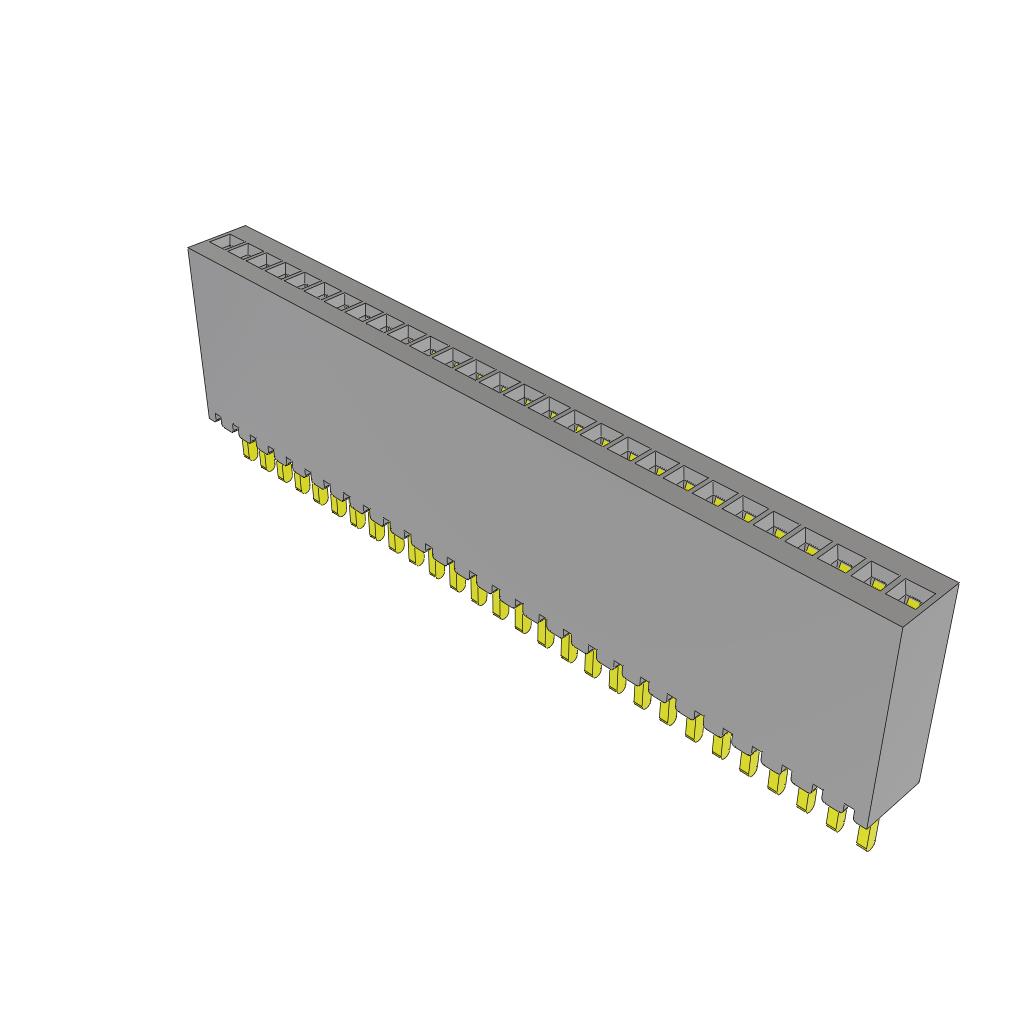

SMS-128-01-G-S
ActiveSamtec Inc.
CONN SKT .050" 28POS
Deep-Dive with AI
Search across all available documentation for this part.
SMS-128-01-G-S
ActiveSamtec Inc.
CONN SKT .050" 28POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMS-128-01-G-S |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 3 µin |
| Contact Finish Thickness - Post | 0.076 µm |
| Contact Length - Post | 2.54 mm |
| Contact Length - Post | 0.1 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Forked |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 28 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Termination | Solder |
SMS-128 Series
| Part | Contact Finish - Mating | Current Rating (Amps) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Length - Post | Contact Length - Post | Number of Positions | Number of Positions Loaded | Contact Type | Contact Material | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Connector Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Number of Rows | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Shape | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Gold | 5 A | Through Hole | -55 °C | 125 °C | Solder | 2.54 mm | 0.1 in | 28 | All | Forked | Phosphor Bronze | 0.335 " | 8.51 mm | Push-Pull | Black | Receptacle | 30 Áin | 0.76 Ám | Tin | 1 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Square | ||
Samtec Inc. | Gold | 5 A | Through Hole | -55 °C | 125 °C | Solder | 2.54 mm | 0.1 in | 28 | All | Forked | Phosphor Bronze | 0.335 " | 8.51 mm | Push-Pull | Black | Receptacle | 10 çin | 0.25 çm | Gold | 1 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | Square | 3 µin | 0.076 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 5.11 | |
Description
General part information
SMS-128 Series
28 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
