431201-05-0

Active

Curtis Industries

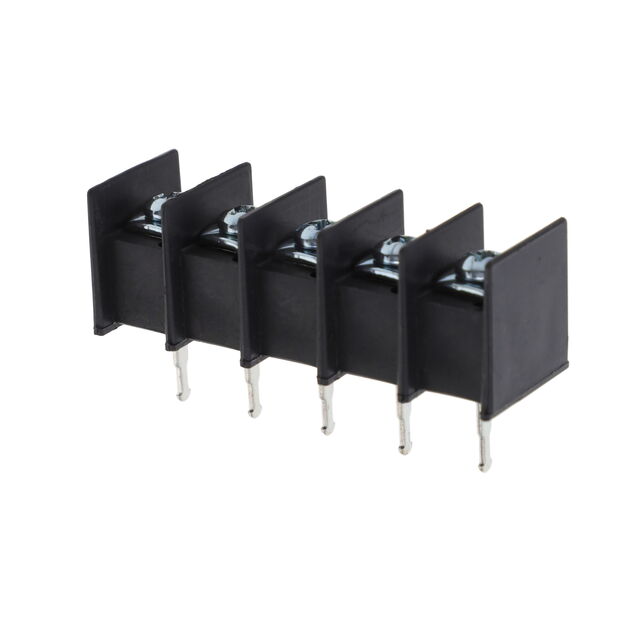

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

431201-05-0

Active

Curtis Industries

CONN BARRIER STRIP 5CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.13
		10	$ 3.91
		25	$ 3.66
		50	$ 3.25
		100	$ 3.18
		250	$ 2.93
		500	$ 2.65
		1000	$ 2.35

Description

General part information

431201 Series

5 Circuit 0.438" (11.12mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	431201-05-0	431201 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret	Solder Turret
Current Rating (Amps)	20 A	20 A
Material - Insulation	Polypropylene (PP)	Polypropylene (PP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	5	1 - 27
Number of Rows	1	1
Number of Wire Entries	5	3 - 26
Number of Wire Entries	-	1 - 27
Operating Temperature	105 C	105 C
Pitch [x]	11.12 mm	11.12 mm
Pitch [x]	0.438 in	0.438 in
Terminal Block Type	Barrier Block	Barrier Block
Top Termination	Screws	Screws
Voltage Rating	600 V	600 V
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	12 AWG	12 AWG

431201 Series

PLUGIN BARRIER TERMINAL BLOCKS ROHS

Part	Material Flammability Rating	Number of Circuits	Top Termination	Barrier Type	Mounting Type	Number of Wire Entries	Number of Rows	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Operating Temperature	Current Rating (Amps)	Material - Insulation	Terminal Block Type	Voltage Rating	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]
Curtis Industries 431201-07-0	UL94 V-0	7	Screws	2 Wall (Dual)	Through Hole	7	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-05-0	UL94 V-0	5	Screws	2 Wall (Dual)	Through Hole	5	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-09-0	UL94 V-0		Screws	2 Wall (Dual)	Through Hole	9	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-26-0	UL94 V-0	26	Screws	2 Wall (Dual)	Through Hole	26	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-04-0	UL94 V-0	4	Screws	2 Wall (Dual)	Through Hole	4	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-06-0	UL94 V-0	6	Screws	2 Wall (Dual)	Through Hole	6	1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in
Curtis Industries 431201-23-0	UL94 V-0	23	Screws	2 Wall (Dual)	Through Hole		1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in	23
Curtis Industries 431201-27-0	UL94 V-0	27	Screws	2 Wall (Dual)	Through Hole		1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in	27
Curtis Industries 431201-22-0	UL94 V-0	22	Screws	2 Wall (Dual)	Through Hole		1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V	11.12 mm	0.438 in	22
Curtis Industries 431201-01-0	UL94 V-0	1	Screws	2 Wall (Dual)	Through Hole		1	12 AWG	22 AWG	Solder Turret	105 C	20 A	Polypropylene (PP)	Barrier Block	600 V			1
