7805 0101000

Active

Belden Inc.

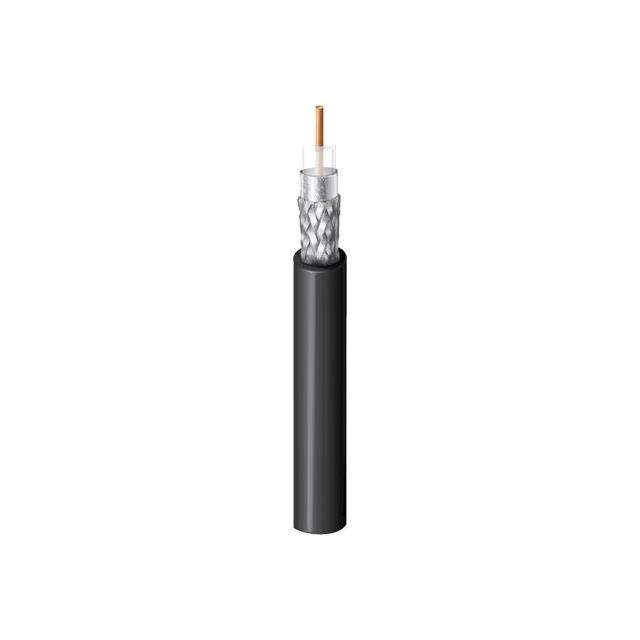

CABLE COAXIAL RG-174 25AWG 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE COAXIAL RG-174 25AWG 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	7805 0101000

Cable Group	RG-174
Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.061 in
Dielectric Diameter [diameter]	1.55 mm
Jacket (Insulation) Diameter [diameter]	2.79 mm
Jacket (Insulation) Diameter [diameter]	0.11 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	304.8 m
Length	1000 ft
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	90 %, 100 %
Shield Material	Aluminum, Polyester, Copper, Tinned
Shield Type	Foil, Braid
Usage	RF Signal
Wire Gauge	25 AWG

Part	Shield Coverage	Wire Gauge	Conductor Strand	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Cable Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Shield Type	Jacket (Insulation) Material	Shield Material	Jacket Color	Length	Length
Belden Inc. 7805 010500	90 % 100 %	25 AWG	Solid	-40 °C	75 ░C	Copper Bare	RG-174	2.79 mm	0.11 in	RF Signal	Coaxial	0.061 in	1.55 mm	Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum Polyester Copper Tinned	Black	152.4 m	6000 in
Belden Inc. 7805 0101000	90 % 100 %	25 AWG	Solid	-40 °C	75 ░C	Copper Bare	RG-174	2.79 mm	0.11 in	RF Signal	Coaxial	0.061 in	1.55 mm	Braid Foil	Poly-Vinyl Chloride (PVC)	Aluminum Polyester Copper Tinned	Black	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.28

General part information

Coaxial Cable 25 AWG RG-174 1000.0' (304.80m)
