141-12NM+

Active

MINI-CIRCUITS

CBL ASSY NTYPE PLUG TO PLUG 12"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY NTYPE PLUG TO PLUG 12"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	141-12NM+	141-12 Series

1st Connector	-	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	N-Type Plug	SMA Plug, Right Angle, SMA Plug, N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	Hand Formable .141	Hand Formable .141
Color	Blue	Blue
Frequency - Max [Max]	18 GHz	18 GHz
Length	12 "	12 "
Length	304.8 mm	304.8 mm
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	N-Type to N-Type	SMA to SMA, N-Type to N-Type

CBL ASSY SMA PLUG TO PLUG 12"

Part	Frequency - Max [Max]	Length	Length	1st Connector	2nd Connector	1st Contact Gender	2nd Connector Mounting Type	Overall Impedance	2nd Contact Gender	Cable Type	Color	Style	1st Connector Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
MINI-CIRCUITS 141-12SMRSM+	18 GHz	12 "	304.8 mm	Right Angle, SMA Plug	SMA Plug, Right Angle	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12SMR+	18 GHz	12 "	304.8 mm	Right Angle, SMA Plug	SMA Plug, Right Angle	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12SM+	18 GHz	12 "	304.8 mm	SMA Plug	SMA Plug	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	SMA to SMA	Free Hanging (In-Line)	105 ░C	-55 °C
MINI-CIRCUITS 141-12NM+	18 GHz	12 "	304.8 mm		N-Type Plug	Male	Free Hanging (In-Line)	50 Ohms	Male	Hand Formable .141	Blue	N-Type to N-Type	Free Hanging (In-Line)	105 ░C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

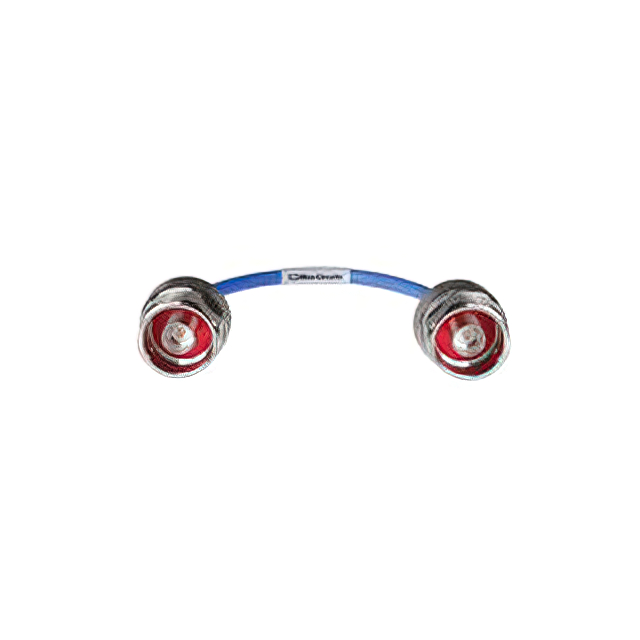

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 12.00" (304.80mm)
