6280-7SG-522

Active

Conxall/Switchcraft

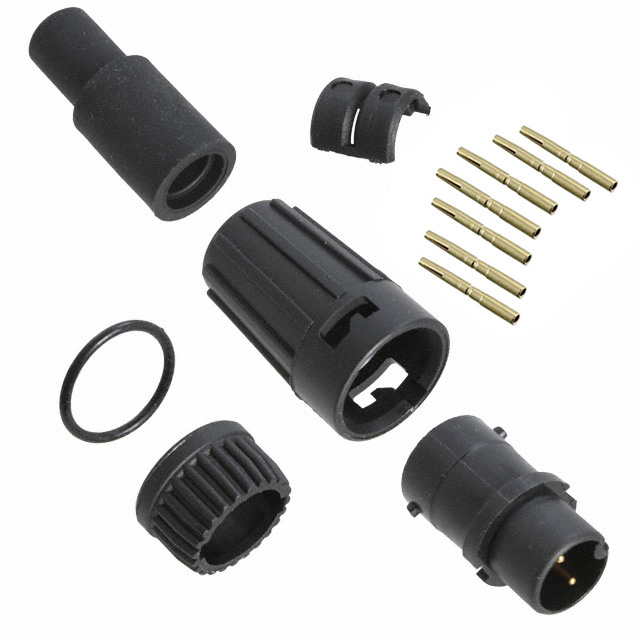

CONN PLUG FMALE 7POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 7POS GOLD CRIMP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Female Sockets Crimp

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6280-7SG-522	6280-7SG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.13 - 0.15 in
Cable Opening	-	3.3 - 3.81 mm
Cable Opening [Max] [diameter]	6.35 mm	6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.59 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	7	7
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

CONN PLUG FMALE 7POS GOLD CRIMP

Part	Voltage Rating	Number of Positions	Fastening Type	Current Rating (Amps)	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Connector Type	Ingress Protection	Primary Material	Backshell Material, Plating	Features	Termination	Shielding	Applications	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Color	Contact Material	Contact Finish - Mating	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 6280-7SG-318	600 V	7	Bayonet Lock	Varies by Wire Gauge	Keyed	-40 °C	115 °C	Free Hanging (In-Line)	Female Sockets, Plug	Weathertight	Plastic	Nylon, Polyamide (PA)	Backshell	Crimp	Unshielded	Automotive, Communication Systems, Instrumentation	4.57 mm	0.18 in	0.2 in	5.08 mm	Black	Brass	Gold
Conxall/Switchcraft 6280-7SG-522	600 V	7	Bayonet Lock	Varies by Wire Gauge	Keyed	-40 °C	115 °C	Free Hanging (In-Line)	Female Sockets, Plug	Weathertight	Plastic	Nylon, Polyamide (PA)	Backshell	Crimp	Unshielded	Automotive, Communication Systems, Instrumentation					Black	Brass	Gold	6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6280-7SG-513	600 V	7	Bayonet Lock	Varies by Wire Gauge	Keyed	-40 °C	115 °C	Free Hanging (In-Line)	Female Sockets, Plug	Weathertight	Plastic	Nylon, Polyamide (PA)	Backshell	Crimp	Unshielded	Automotive, Communication Systems, Instrumentation					Black	Brass	Gold					0.13 in, 0.15 in	3.3 mm, 3.81 mm
