FFB0848SHE

Obsolete

Delta Electronics

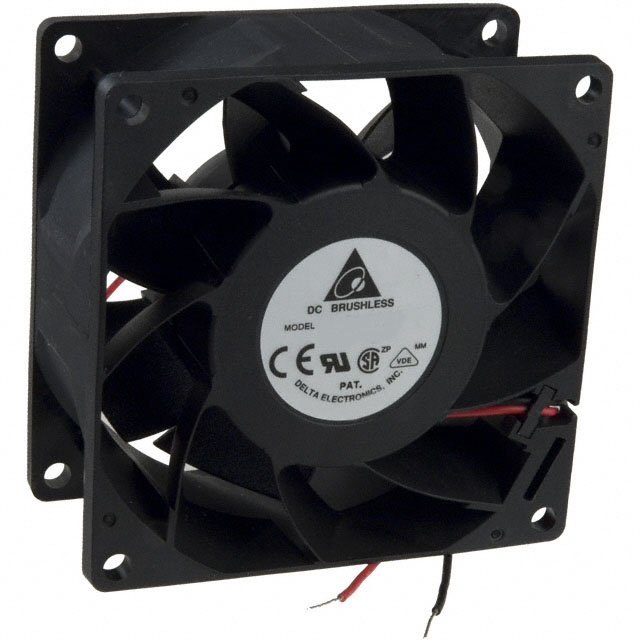

FAN AXIAL 80X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 80X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Bearing Type	Material - Frame	Width [y]	Weight	Weight	Static Pressure	Static Pressure	RPM	Power (Watts)	Fan Type	Termination	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Voltage - Rated [custom]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Noise	Air Flow	Air Flow	Lifetime @ Temp.
Delta Electronics FFB0848SHE	Ball	Plastic	38 mm	170.1 g	0.375 lb	147.2 Pa	0.591 in H2O	4900 RPM	7.68 W	Tubeaxial	2 Wire Leads	CE CSA UL VDE	80 mm	80 mm	48 VDC	-10 °C	-10 °C	60 °C	60 °C	Plastic	28 V	56 VDC	48.5 dB(A)	1.92 m³/min	68.5 CFM	70000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 80mm L x 80mm H Ball 68.5 CFM (1.92m³/min) 2 Wire Leads
