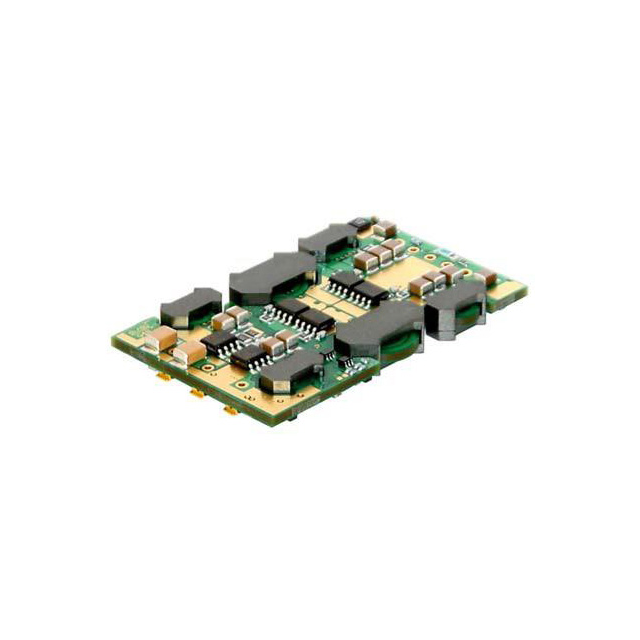

Q48S08120-PS00G

Active

Bel Power Solutions

DC DC CONVERTER 12V 96W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC DC CONVERTER 12V 96W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 12V 96W

Part	Voltage - Input (Min) [Min]	Voltage - Output 1	Control Features	Voltage - Isolation	Mounting Type	Power (Watts)	Package / Case	Voltage - Input (Max) [Max]	Number of Outputs	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type
Bel Power Solutions Q48S08120-PS00G	36 V	12 V	Active High, Enable	2000 V	Surface Mount	96 W	1/4 Brick, 8-SMD Module	75 V	1	8 A	0.34 in	36.8 mm	8.6 mm	2.3 in	58.4 mm	1.45 in	ITE (Commercial)	OCP, OTP, OVP, Remote On/Off, UVLO	85 °C	-40 °C	Isolated Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 12V 8A 36V - 75V Input
