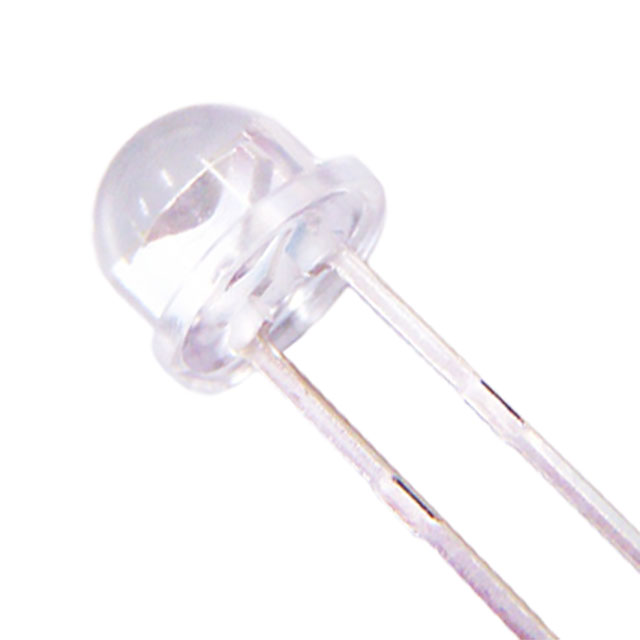

C535A-WJN-CV0W0231

Active

Cree LED

2130-4180MCD, CHROM W2-W3,BULK PACK PACK

Search across all available documentation for this part.

Active

Cree LED

2130-4180MCD, CHROM W2-W3,BULK PACK PACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Cool 9000K LED Indication - Discrete 3.2V Radial

Technical documentation and resources

Specification	C535A-WJN-CV0W0231	C535A Series

Color	Cool, White	Cool, White
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max) [Max] [z]	6.15 mm	4.4 - 6.15 mm
Lens Color	Colorless	Colorless
Lens Size [diameter]	4.8 mm Dia	4.8 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	3155 mcd	2260 - 3155 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package [diameter]	5 mm	5 mm
Viewing Angle	110 °	110 °
Voltage - Forward (Vf) (Typ)	3.2 V	3.2 V
Wavelength - Dominant [custom]	9000 K	9000 K

Part	Lens Size [diameter]	Color	Lens Color	Current - Test	Package / Case	Wavelength - Dominant [custom]	Supplier Device Package [diameter]	Voltage - Forward (Vf) (Typ)	Lens Style	Configuration	Lens Transparency	Millicandela Rating	Mounting Type	Height (Max) [Max] [z]	Viewing Angle
Cree LED C535A-WJN-CV0W0231	4.8 mm Dia	Cool, White	Colorless	20 mA	Radial	9000 K	5 mm	3.2 V	Round with Domed Top	Standard	Clear	3155 mcd	Through Hole	6.15 mm	110 °
Cree LED C535A-WJN-CU0V0231	4.8 mm Dia	Cool, White	Colorless	20 mA	Radial	9000 K	5 mm	3.2 V	Round with Domed Top	Standard	Clear	2260 mcd	Through Hole	4.4 mm	110 °
