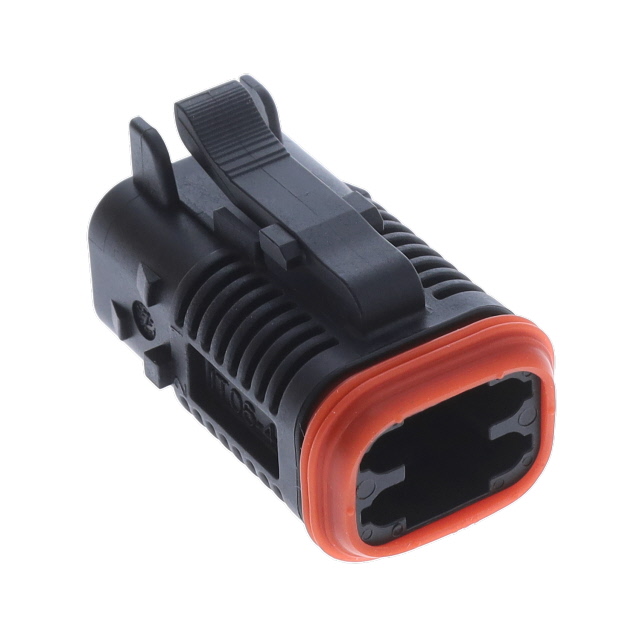

IT06-4S-006

Active

ITT Cannon, LLC

CONN PLUG HSG 4POS

IT06-4S-006

Active

ITT Cannon, LLC

CONN PLUG HSG 4POS

Description Specifications Series Pricing CAD Documents

Description

General part information

IT06-4 Series

4 Rectangular Connectors - Housings Plug Black

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-4S-006

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	IP68, IP69K, IP67, Sealed
Insulation Material	Nylon, Glass Filled, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

IT06-4 Series

Part	Fastening Type	Number of Rows	Features	Operating Temperature (Max)	Operating Temperature (Min)	Color	Contact Termination	Contact Type	Connector Type	Number of Positions	Insulation Material	Mounting Type
ITT Cannon, LLC IT06-4S-002	Latch Lock	2	IP67 IP68 IP69K Sealed	125 °C	-55 °C	Gray	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-004	Latch Lock	2	Cap (Cover) IP67 IP68 IP69K Sealed	125 °C	-55 °C	Black	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-004-N	Latch Lock	2	Cap (Cover) IP67 IP68 IP69K Sealed	125 °C	-55 °C	Black	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-006-N	Latch Lock	2	IP67 IP68 IP69K Sealed	125 °C	-55 °C	Black	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-000-N	Latch Lock	2	Cap (Cover) IP67 IP68 IP69K Sealed	125 °C	-55 °C	Gray	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-002-N	Latch Lock	2	IP67 IP68 IP69K Sealed	125 °C	-55 °C	Gray	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-000	Latch Lock	2	Cap (Cover) IP67 IP68 IP69K Sealed	125 °C	-55 °C	Gray	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)
ITT Cannon, LLC IT06-4S-006	Latch Lock	2	IP67 IP68 IP69K Sealed	125 °C	-55 °C	Black	Crimp	Female Socket	Plug	4	Glass Filled Nylon Polyamide (PA)	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

IT06-4S-006 | Datasheet
