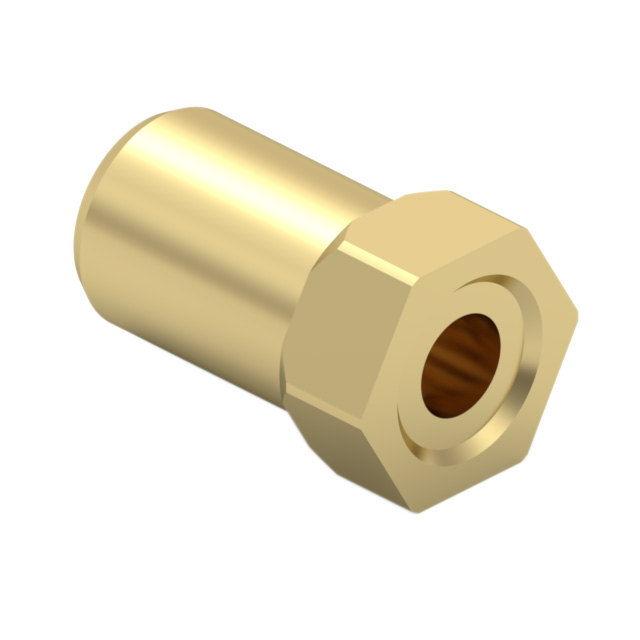

0624-0-15-15-10-27-10-0
ActiveMill-Max Manufacturing Corp.
ZERO PROFILE RECEPTACLE FOR LEAD
Deep-Dive with AI
Search across all available documentation for this part.
0624-0-15-15-10-27-10-0
ActiveMill-Max Manufacturing Corp.
ZERO PROFILE RECEPTACLE FOR LEAD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0624-0-15-15-10-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.017 in |
| Accepts Pin Diameter [Max] | 0.43 mm |
| Accepts Pin Diameter [Min] | 0.3 mm |
| Accepts Pin Diameter [Min] | 0.012 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.22 mm |
| Flange Diameter [diameter] | 0.048 in |
| Length - Overall [x] | 1.8 mm |
| Length - Overall [x] | 0.071 in |
| Mounting Hole Diameter [diameter] | 0.049 in |
| Mounting Hole Diameter [diameter] | 1.24 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.028 in |
| Pin Hole Diameter [diameter] | 0.71 mm |
| Socket Depth | 1.57 mm |
| Socket Depth | 0.062 in |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.34 | |||
| 50 | $ 0.31 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 1000 | $ 0.21 | |||
| 2500 | $ 0.20 | |||
Description
General part information
0624-0 Series
Pin Receptacle Connector 0.012" ~ 0.017" (0.30mm ~ 0.43mm) No Tail Press-Fit
Documents
Technical documentation and resources
No documents available
