Mill-Max Manufacturing Corp.

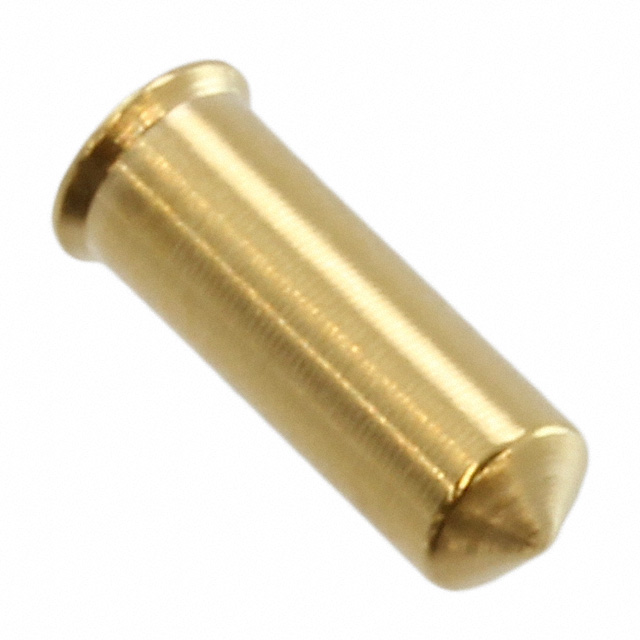

CONN PIN RCPT .040-.050 SOLDER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .040-.050 SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	0355-0-15-15-02-27-10-0

Accepts Pin Diameter [Max]	0.05 in
Accepts Pin Diameter [Max]	1.27 mm
Accepts Pin Diameter [Min]	1.02 mm
Accepts Pin Diameter [Min]	0.04 "
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	3 mm, 0.118 "
Length - Overall	7.37 mm
Length - Overall	0.29 in
Mounting Hole Diameter [diameter]	0.102 in
Mounting Hole Diameter [diameter]	2.59 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.73 mm
Pin Hole Diameter [diameter]	0.068 in
Socket Depth	6.6 mm
Socket Depth	0.26 in
Tail Type	No Tail
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Contact Material	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Socket Depth	Socket Depth	Termination	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall	Length - Overall	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 0355-0-15-80-02-80-10-0	200 Áin	5.08 Ám	Tin	Beryllium Copper	1.02 mm	0.05 in	0.04 "	1.27 mm	6.6 mm	0.26 in	Solder	No Tail	0.102 in	2.59 mm	1.73 mm	0.068 in	-55 °C	125 °C	7.37 mm	0.29 in	0.118 " 3 mm
Mill-Max Manufacturing Corp. 0355-0-15-80-02-27-10-0	30 Áin	0.76 Ám	Gold	Beryllium Copper	1.02 mm	0.05 in	0.04 "	1.27 mm	6.6 mm	0.26 in	Solder	No Tail	0.102 in	2.59 mm	1.73 mm	0.068 in	-55 °C	125 °C	7.37 mm	0.29 in	0.118 " 3 mm
Mill-Max Manufacturing Corp. 0355-0-15-01-02-27-10-0	30 Áin	0.76 Ám	Gold	Beryllium Copper	1.02 mm	0.05 in	0.04 "	1.27 mm	6.6 mm	0.26 in	Solder	No Tail	0.102 in	2.59 mm	1.73 mm	0.068 in	-55 °C	125 °C	7.37 mm	0.29 in	0.118 " 3 mm
Mill-Max Manufacturing Corp. 0355-0-15-15-02-27-10-0	30 Áin	0.76 Ám	Gold	Beryllium Copper	1.02 mm	0.05 in	0.04 "	1.27 mm	6.6 mm	0.26 in	Solder	No Tail	0.102 in	2.59 mm	1.73 mm	0.068 in	-55 °C	125 °C	7.37 mm	0.29 in	0.118 " 3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.040" ~ 0.050" (1.02mm ~ 1.27mm) No Tail Solder
