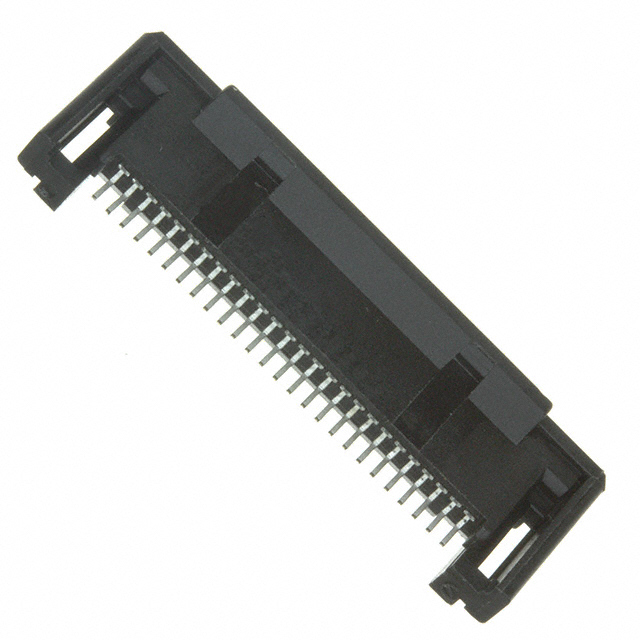

10030570-3112LF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL
Deep-Dive with AI
Search across all available documentation for this part.
10030570-3112LF
ObsoleteAmphenol ICC (FCI)
CONN PCMCIA CARD PUSH-PULL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10030570-3112LF |
|---|---|
| Card Type | PCMCIA - ExpressCard™ |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Height Above Board [z] | 5 mm |
| Height Above Board [z] | 0.197 in |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
10030570 Series
26 Position Card Connector PCMCIA - ExpressCard™ Board Edge, Straddle Mount Gold
Documents
Technical documentation and resources
No documents available
