General part information

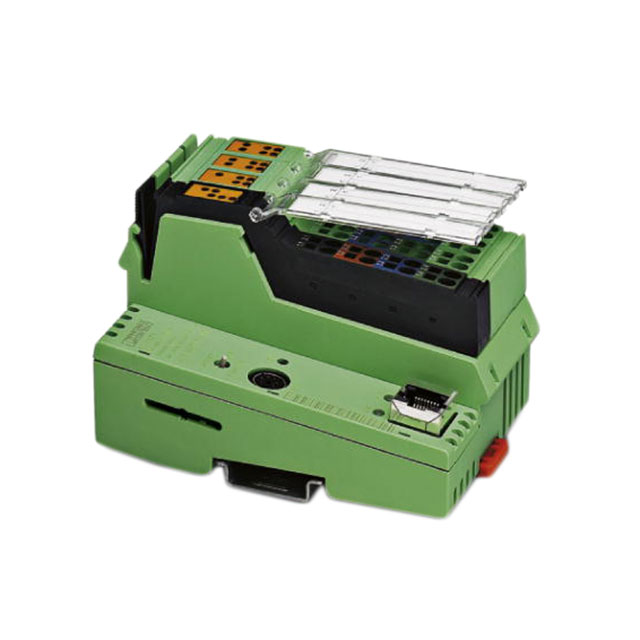

I/O Controllers ILC 131 ETH
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 2700973 |
|---|---|
| Approval Agency | cULus, UL, cUL |
| Communications | RS-232C, Mini-DIN, Ethernet |
| Display Type | No Display |
| Mounting Type | DIN Rail |
| Number of Inputs and Type [custom] | 8 |
| Number of Inputs and Type [custom] | Digital |
| Number of Outputs and Type [custom] | 4 |
| Number of Outputs and Type [custom] | Solid State |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Software | PC Worx |
| Voltage - Supply | 24 VDC |
| Weight | 370.13 g |
| Weight | 0.816 lb |
I/O Controllers ILC 131 ETH
| Part | Software | Weight | Weight | Voltage - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs and Type [custom] | Number of Outputs and Type [custom] | Number of Inputs and Type [custom] | Number of Inputs and Type [custom] | Communications | Approval Agency | Display Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2700973 | PC Worx | 370.13 g | 0.816 lb | 24 VDC | 55 °C | -25 °C | 4 | Solid State | 8 | Digital | Ethernet, Mini-DIN, RS-232C | cUL, cULus, UL | No Display | DIN Rail |
