PM1M050H1AE

Obsolete

JAE Electronics

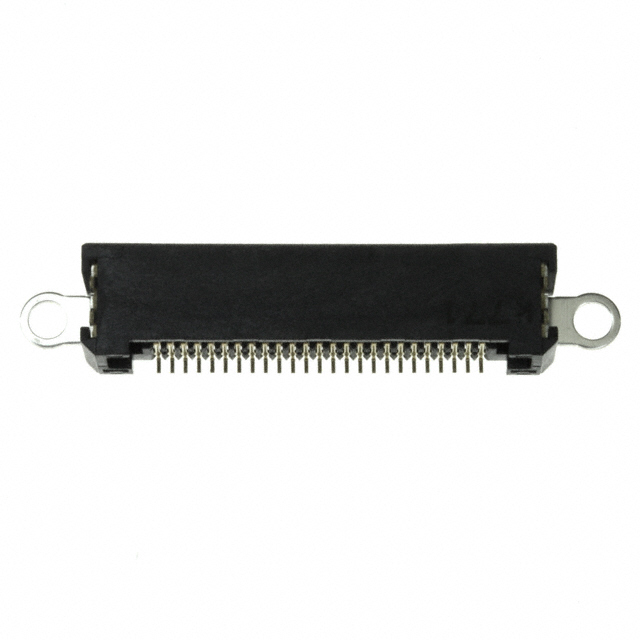

CONN PLUG 50POS R/A SMD GOLD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG 50POS R/A SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mounting Type	Pitch [x]	Pitch [x]	Features	Height Above Board	Height Above Board	Contact Finish	Connector Type
JAE Electronics PM1F050N1AE	50	4 Áin	0.1 Ám	2	Through Hole Right Angle	0.8 mm	0.031 in	Board Guide	0.213 in	5.4 mm	Gold	Receptacle Outer Shroud Contacts
JAE Electronics PM1F050NSA	50	4 Áin	0.1 Ám	2	Through Hole Right Angle	0.8 mm	0.031 in	Board Guide	0.213 in	5.4 mm	Gold	Receptacle Outer Shroud Contacts
JAE Electronics PM1M050H1AE	50	4 Áin	0.1 Ám	2	Surface Mount Right Angle	0.8 mm	0.031 in	Board Guide	0.21 in	5.33 mm	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
