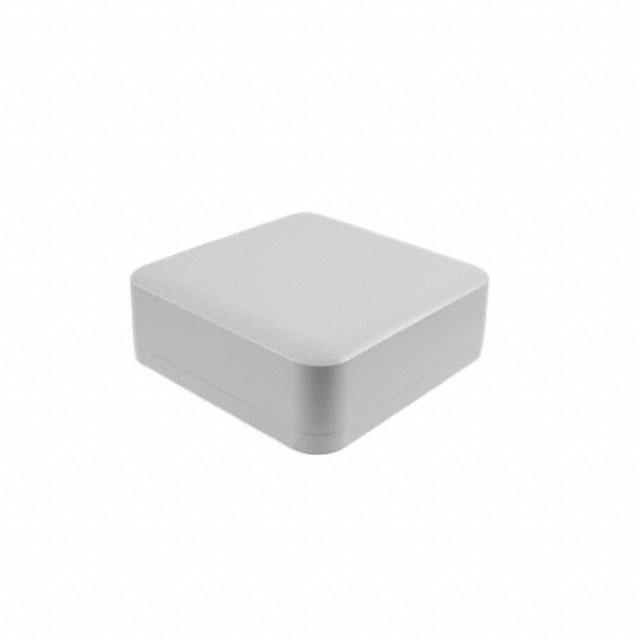

1557HA2GY

Active

Hammond Manufacturing

LIGHT GRAY POLYCARBONATE WALL MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Search across all available documentation for this part.

1557HA2GY

Active

Hammond Manufacturing

LIGHT GRAY POLYCARBONATE WALL MOUNT WATERTIGHT ENCLOSURE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 39.30
		5	$ 36.99
		10	$ 34.68
		25	$ 32.37
		50	$ 31.79
		100	$ 31.21
		250	$ 30.75

Description

General part information

1557 Series

Box Polycarbonate Gray Hand Held, Cover Included 7.870" L x 7.870" W (199.90mm x 199.90mm) X 2.760" (70.10mm)

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1557HA2GY	1557 Series

Area (L x W)	-	64 - 144 cm˛
Area (L x W)	-	9.92 - 256 in˛
Area (L x W)	-	39.7 in˛
Area (L x W) [custom]	399 cm˛	399 cm˛
Area (L x W) [custom]	61.8 in˛	61.8 in˛
Color	Gray	Black, Gray
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Height [z]	70.1 mm	44.96 - 70.1 mm
Height [z]	2.76 in	1.77 - 2.76 in
Material	Polycarbonate	Polycarbonate
Material Flammability Rating	UL94 5VA	UL94 5VA
Ratings	IP68, NEMA 4, UL-508, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, NEMA 12	IP68, NEMA 4, UL-508, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, NEMA 12
Size / Dimension [x]	199.9 mm	80.01 - 199.9 mm
Size / Dimension [x]	7.87 in	3.15 - 7.87 in
Size / Dimension [y]	199.9 mm	80.01 - 199.9 mm
Size / Dimension [y]	7.87 in	3.15 - 7.87 in
Thickness	0.12 in	0.12 in
Thickness	3.05 mm	3.05 mm

1557 Series

BLACK POLYCARBONATE WALL MOUNT WATERTIGHT ENCLOSURE

Part	Material Flammability Rating	Container Type	Design	Ratings	Material	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Color	Height [z]	Height [z]	Thickness	Thickness	Area (L x W)	Area (L x W)	Area (L x W)
Hammond Manufacturing 1557H2BK	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate	399 cm˛	61.8 in˛	199.9 mm	7.87 in	199.9 mm	7.87 in	Black	1.77 in	44.96 mm	0.12 in	3.05 mm
Hammond Manufacturing 1557B2BK	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate			80.01 mm	3.15 in	80.01 mm	3.15 in	Black	1.77 in	44.96 mm	0.12 in	3.05 mm	64 cm˛	9.92 in˛
Hammond Manufacturing 1557BA2GY	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate			80.01 mm	3.15 in	80.01 mm	3.15 in	Gray	2.36 in	59.94 mm	0.12 in	3.05 mm	64 cm˛	9.92 in˛
Hammond Manufacturing 1557F2BK	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate			160.02 mm	6.3 "	160.02 mm	6.3 "	Black	1.77 in	44.96 mm	0.12 in	3.05 mm		256 cm˛	39.7 in˛
Hammond Manufacturing 1557D2GY	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate							Gray	1.77 in	44.96 mm	0.12 in	3.05 mm	144 cm˛	22.3 in˛
Hammond Manufacturing 1557HA2GY	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate	399 cm˛	61.8 in˛	199.9 mm	7.87 in	199.9 mm	7.87 in	Gray	2.76 in	70.1 mm	0.12 in	3.05 mm
Hammond Manufacturing 1557F2GY	UL94 5VA	Box	Cover Included, Hand Held	IP68, NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, UL-508	Polycarbonate			160.02 mm	6.3 "	160.02 mm	6.3 "	Gray	1.77 in	44.96 mm	0.12 in	3.05 mm		256 cm˛	39.7 in˛
