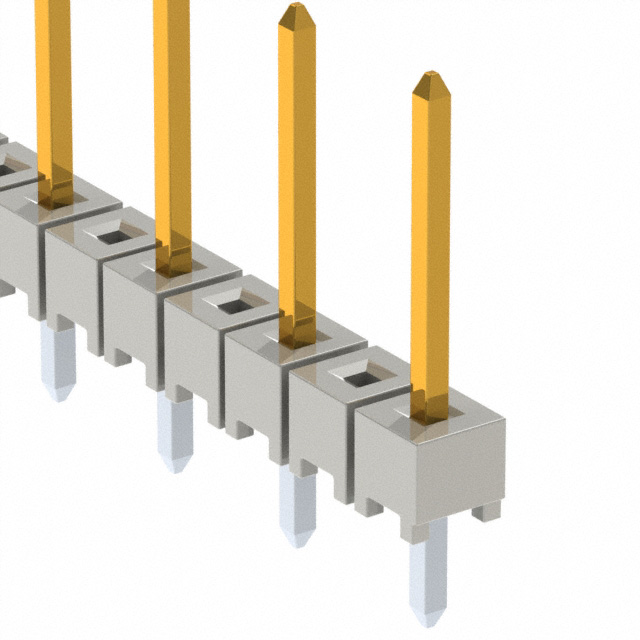

HTSW-211-14-S-S

Active

Samtec Inc.

CONN HEADER VERT 11POS 5.08MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 11POS 5.08MM

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-211-14-S-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Mating	8.13 mm
Contact Length - Mating	0.32 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	11
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	13.46 mm
Overall Contact Length	0.53 in
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

Part	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Termination	Contact Type	Contact Finish - Mating	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Overall Contact Length	Overall Contact Length	Fastening Type	Insulation Height	Insulation Height	Contact Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating
Samtec Inc. HTSW-211-15-G-S
Samtec Inc. HTSW-211-08-G-D
Samtec Inc. HTSW-211-15-G-S-LL	Square	13.21 mm	0.52 in	Natural	Gold	Through Hole	5.08 mm	0.2 in	Kinked Pin Solder	Male Pin	Gold	Board to Board Cable	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	0.73 in	18.54 mm	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Varies by Wire Gauge	-55 °C	125 °C	Unshrouded	0.11 in	2.79 mm	1	All	11	3 µin	0.076 µm	Header	UL94 V-0
Samtec Inc. HTSW-211-08-G-S
Samtec Inc. HTSW-211-14-S-S	Square			Natural	Tin	Through Hole	5.08 mm	0.2 in	Solder	Male Pin	Gold	Board to Board Cable	Liquid Crystal Polymer (LCP)	30 Áin	0.76 Ám	0.53 in	13.46 mm	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	Varies by Wire Gauge	-55 °C	125 °C	Unshrouded	0.11 in	2.79 mm	1	All	11			Header	UL94 V-0	8.13 mm	0.32 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.21

General part information

Connector Header Through Hole 11 position 0.200" (5.08mm)
