145103-01-24.00
ActiveAmphenol RF

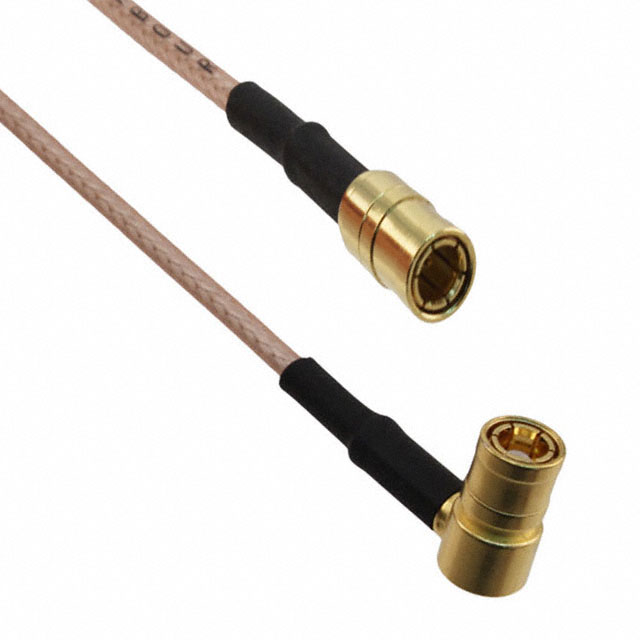

CBL ASSY SMB PLUG TO PLUG 24"
Deep-Dive with AI
Search across all available documentation for this part.
145103-01-24.00
ActiveAmphenol RF
CBL ASSY SMB PLUG TO PLUG 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 145103-01-24.00 |
|---|---|
| 1st Connector | SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | SMB Plug, Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | SMB to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.98 | |
| 10 | $ 23.62 | |||
| 25 | $ 22.60 | |||
| 50 | $ 21.87 | |||
| 100 | $ 21.14 | |||
| 250 | $ 19.98 | |||
| 500 | $ 19.39 | |||
Description
General part information
145103 Series
Cable Assembly Coaxial SMB to SMB RG-316 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
