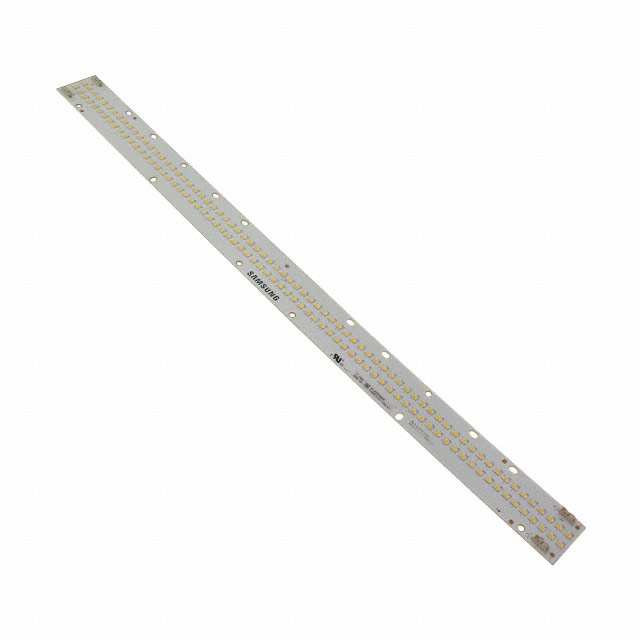

Specification	SI-B8R521560WW

CCT (K)	5000 K
Color	Cool, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Test	1.12 A
Features	With Connector
Height	5.2 mm
Lens Type	Flat
Lumens/Watt	181 lm/W
Luminous Flux (Typical)	9300 lm
Size / Dimension Length	559.7 mm
Size / Dimension Width	39.8 mm
Temperature - Test	65 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	46 V

SI-B8 Series

...

Part	Configuration	Current - Test	Temperature - Test	Color	Lumens/Watt	Type	Size / Dimension Width	Size / Dimension Length	Luminous Flux (Typical)	Features	Lens Type	Voltage - Forward (Vf) (Typ)	CRI (Color Rendering Index)	Viewing Angle	Current - Max	CCT (K)	CCT Description	Height	Luminous Flux (Maximum)	Luminous Flux (Minimum)	Luminous Flux
Samsung Semiconductor, Inc. SI-B8T162560WW	Linear Light Strip	700 mA	45 °C	Neutral White	127 lm/W	LED Module	40 mm	560 mm	2160 lm	With Connector	Flat	24.3 V	80	115 °	750 mA	4000 K	3-Step MacAdam Ellipse	5.6 mm
Samsung Semiconductor, Inc. SI-B8R09626001	Rectangle	385 mA	35 °C	Cool White	154 lm/W	LED Module	250 mm	259 mm	1420 lm	With Connector	Flat	24 VDC	80	115 °	600 mA	5000 K	4-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8R07128SWW	Linear Light Strip	800 mA	50 °C	Cool White	162 lm/W	LED Module	23.8 mm	279.7 mm	1140 lm	With Connector	Flat	8.8 V	80	115 °	1.44 A	5000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V09526001	Rectangle	385 mA	35 °C	Warm White	137 lm/W	LED Module	250 mm	259 mm	1260 lm	With Connector	Flat	24 VDC	80	145 °	600 mA	3000 K	3-Step MacAdam Ellipse	6.6 mm
Samsung Semiconductor, Inc. SI-B8U14156LWW	Linear Light Strip	400 mA	50 °C	Warm White	157 lm/W	LED Module	23.8 mm	559.7 mm	2210 lm	With Connector	Flat	35.2 V	80	115 °	720 mA	3500 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8V171560WW	Linear Light Strip	700 mA	50 °C	Warm White	140 lm/W	LED Module	18 mm	560 mm	2350 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	3000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8U10128001	Rectangle	700 mA	35 °C	Warm White	157 lm/W	LED Module	273 mm	230 mm	1320 lm	With Connector	Flat	12 VAC	80	115 °	1.6 A	3500 K	3-Step MacAdam Ellipse	6.7 mm
Samsung Semiconductor, Inc. SI-B8T171550WW	Linear Light Strip	700 mA	50 °C	Neutral White	146 lm/W	LED Module	18 mm	550 mm	2460 lm	With Connector	Flat	24 VDC	80	115 °	900 mA	4000 K	3-Step MacAdam Ellipse	5.8 mm
Samsung Semiconductor, Inc. SI-B8T251560WW	Linear Light Strip	1.12 A	65 °C	Neutral White	175 lm/W	LED Module	18 mm	560 mm	4510 lm		Flat	23 V	80	118 °	2.8 A	4000 K		5.5 mm
Samsung Semiconductor, Inc. SI-B8U26156CUS	Linear Light Strip	1.12 A	65 °C	Warm White	137 lm/W	LED Module	18 mm	560 mm			Flat	24.4 V	80		1.62 A	3500 K	3-Step MacAdam Ellipse	5.5 mm	4120 lm	3370 lm	3744 lm
