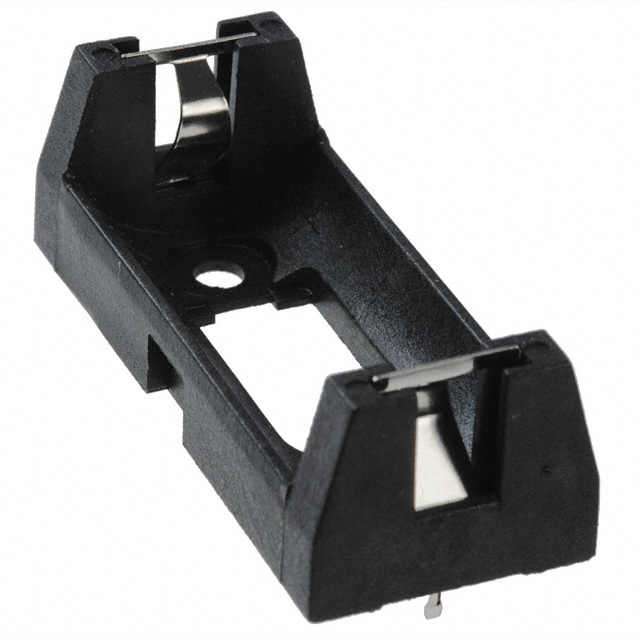

BC2/3AE

Active

MPD (Memory Protection Devices)

BATTERY HOLDER 2/3A PC PIN

Search across all available documentation for this part.

Active

MPD (Memory Protection Devices)

BATTERY HOLDER 2/3A PC PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BC2/3AE	BC2/3 Series

Accessory Type	-	Retainer
Battery Cell Size	2/3A	2/3A
Battery Type, Function	Cylindrical, Holder	Cylindrical, Holder
For Use With/Related Products	-	BC2/3AE-ND
Height Above Board	14.07 mm	14.07 mm
Height Above Board	0.554 in	0.554 in
Number of Cells	1	1
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-40 °C	-40 °C
Style	Holder (Open)	Holder (Open)
Termination Style	PC Pin	PC Pin

COVER BATTERY FOR BC2/3AE HOLDER

Part	For Use With/Related Products	Accessory Type	Height Above Board	Height Above Board	Battery Cell Size	Operating Temperature [Max]	Operating Temperature [Min]	Style	Battery Type, Function	Number of Cells	Termination Style
MPD (Memory Protection Devices) BC2/3AC	BC2/3AE-ND	Retainer
MPD (Memory Protection Devices) BC2/3AE			14.07 mm	0.554 in	2/3A	200 °C	-40 °C	Holder (Open)	Cylindrical, Holder	1	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Battery Holder (Open) 2/3A 1 Cell PC Pin

Technical documentation and resources

No documents available
