773105T 0105000

Active

Belden Inc.

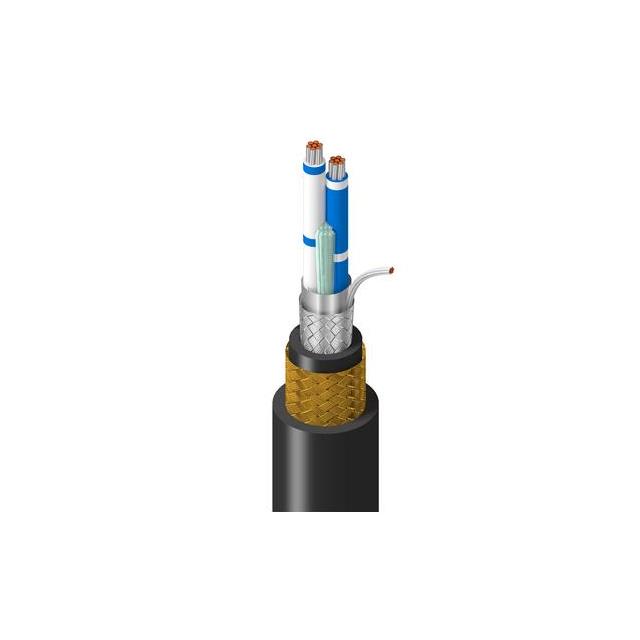

CABLE 2COND 22AWG BLK SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 22AWG BLK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	773105T 0105000

Cable Type	Multi-Conductor
Conductor Insulation	Foam High Density Polyethylene (FHDPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter [diameter]	0.6 in
Jacket (Insulation) Diameter [diameter]	15.24 mm
Jacket Color	Black
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Features	Number of Conductors	Conductor Material	Shield Material	Shield Type	Cable Type	Wire Gauge
Belden Inc. 773105T 0105000	65 % 100 %	0.6 in	15.24 mm	Black	Foam High Density Polyethylene (FHDPE)	-20 C	60 °C	300 V	7	30 AWG	Drain Wire UV Resistant	2	Copper Tinned	Aluminum Copper Tinned	Braid Foil	Multi-Conductor	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 9.60

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 22 AWG Foil, Braid 5000' (1524.0m)
