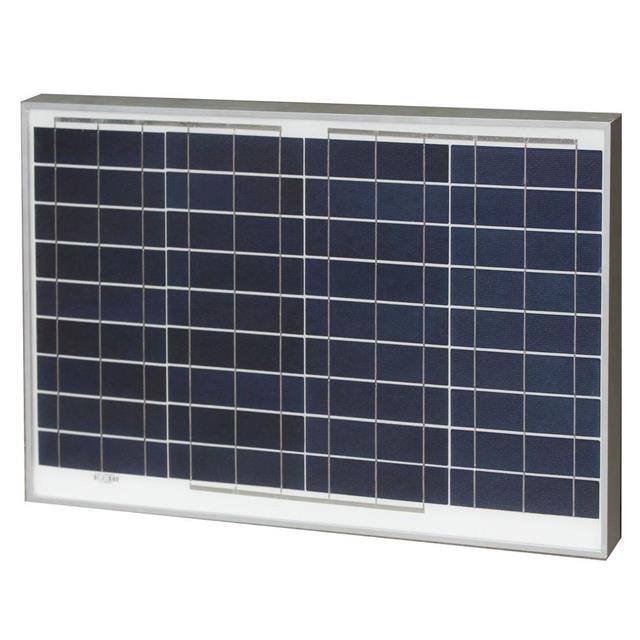

TPS-12-85W

Active

Tycon Systems Inc.

85W 12V SOLAR PANEL - 30.7 X 26.

Search across all available documentation for this part.

Active

Tycon Systems Inc.

85W 12V SOLAR PANEL - 30.7 X 26.

Technical Specifications

Parameters and characteristics commom to parts in this series

85W 12V SOLAR PANEL - 30.7 X 26.

Part	Package / Case	Current - Short Circuit (Isc)	Current @ Pmpp	Voltage @ Pmpp	Type	Voltage - Open Circuit	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts) - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Tycon Systems Inc. TPS-12-85W	Cell (36)	4.41 A	4.33 A	19.65 V	Monocrystalline	23.7 V	30.709 in	1.378 "	26.693 "	780 mm	35 mm	678 mm	85 W	85 °C	-40 °C
Tycon Systems Inc. TPS-12-15W	Cell (36)				Monocrystalline								15 W	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 185.09

General part information

Monocrystalline Solar Cell 85 W 23.7 V
