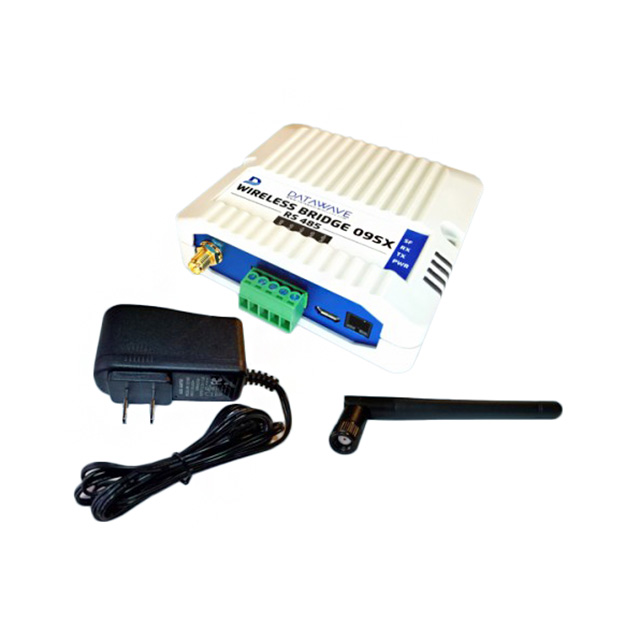

WB-RS485-09SX-A

Active

Datawave LLC

900 MHZ 1W POWER WIRELESS BRIDGE

Search across all available documentation for this part.

Active

Datawave LLC

900 MHZ 1W POWER WIRELESS BRIDGE

Technical Specifications

Parameters and characteristics commom to parts in this series

900 MHZ 1W POWER WIRELESS BRIDGE

Part	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Function	Sensitivity	Modulation or Protocol	Interface	Frequency	Data Rate (Max) [Max]
Datawave LLC WB-RS485-09SX-A	1 W	30 VDC	7 V	General Purpose	Transceiver	-113 dBm	ISM	RS-485	900 MHz	115.2 kbps
Datawave LLC WB-RS485-24HP-A	63 mW	30 VDC	7 V	General Purpose	Transceiver	-101 dBm	ISM	RS-485	2.4 GHz	115.2 kbps
Datawave LLC WB-RS485-24LP-A		30 VDC	7 V	General Purpose	Transceiver	-101 dBm	802.15.4	RS-485	2.4 GHz	115.2 kbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 223.75

General part information

RF Transceiver 900MHz ISM RS-485 115.2kbps
