W7382-2SG-P-300
ActiveConxall/Switchcraft

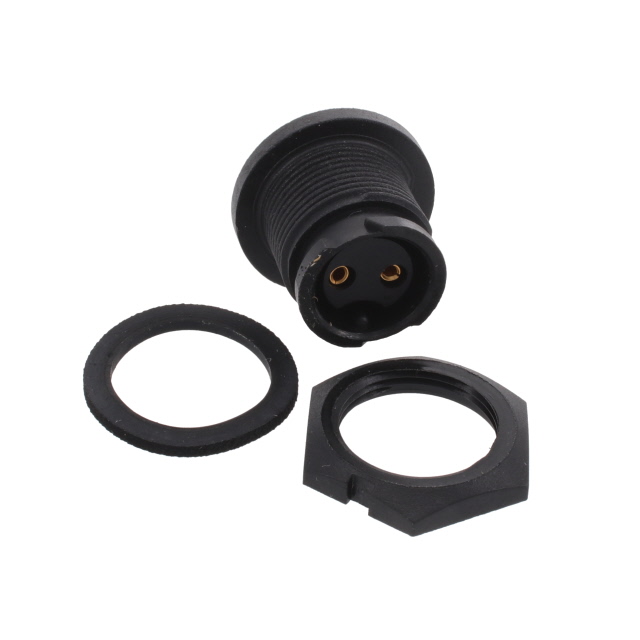

CONN RCPT FMALE 2POS SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W7382-2SG-P-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 2POS SOLDER CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W7382-2SG-P-300 | W7382-2 Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | UV Resistant | UV Resistant |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Thermoplastic | Thermoplastic |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Number of Positions | 2 | 2 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 300 VAC | 300 VAC |
W7382-2 Series
CONN RCPT FMALE 2POS SOLDER CUP
| Part | Fastening Type | Contact Finish - Mating | Mounting Feature | Applications | Contact Material | Backshell Material, Plating | Current Rating (Amps) | Shielding | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Connector Type | Insert Material | Voltage Rating | Color | Number of Positions | Features | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft W7382-2SG-P-300 | Bayonet Lock | Gold | Bulkhead - Front Side Nut | Automotive, Communication Systems, Instrumentation | Copper Alloy | Thermoplastic | Varies by Wire Gauge | Unshielded | IP66, IP67, IP68 | 85 °C | -40 °C | Keyed | Receptacle, Female Sockets | Thermoplastic | 300 VAC | Black | 2 | UV Resistant | Plastic |
Conxall/Switchcraft W7382-2PG-P-3ES | Bayonet Lock | Gold | Bulkhead - Front Side Nut | Automotive, Communication Systems, Instrumentation | Copper Alloy | Thermoplastic | Varies by Wire Gauge | Unshielded | IP66, IP67, IP68 | 85 °C | -40 °C | Keyed | Male Pins, Receptacle | Thermoplastic | 300 VAC | Black | 2 | UV Resistant | Plastic |
Conxall/Switchcraft W7382-2SG-P-3ES | Bayonet Lock | Gold | Bulkhead - Front Side Nut | Automotive, Communication Systems, Instrumentation | Copper Alloy | Thermoplastic | Varies by Wire Gauge | Unshielded | IP66, IP67, IP68 | 85 °C | -40 °C | Keyed | Receptacle, Female Sockets | Thermoplastic | 300 VAC | Black | 2 | UV Resistant | Plastic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.89 | |
| 10 | $ 5.30 | |||
| 25 | $ 4.99 | |||
| 50 | $ 4.86 | |||
| 100 | $ 4.73 | |||
| 250 | $ 4.51 | |||
Description
General part information
W7382-2 Series
2 Position Circular Connector Receptacle, Female Sockets Solder Cup
Documents
Technical documentation and resources
