Technical Specifications
Parameters and characteristics for this part
| Specification | HSB-006-F 7-12 |
|---|---|
| Color | Gray |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 35 A |
| Gender | Female |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 6+Ground |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H16B |
| Termination Style | Screw |
| Voltage Rating | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.75 | |
| 10 | $ 18.36 | |||
| 25 | $ 17.87 | |||
| 50 | $ 16.99 | |||
| 100 | $ 15.33 | |||
| 250 | $ 15.24 | |||
| 500 | $ 13.28 | |||
T2060122201 Series
HSB-006-F 7-12
| Part | Termination Style | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Current Rating (Amps) | Gender | Housing Material | Material Flammability Rating | Number of Positions | Size | Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HSB-006-F 7-12 | Screw | 690 V | 125 °C | -40 °C | Silver | 35 A | Female | Polycarbonate (PC) | UL94 V-0 | 6+Ground | H16B | Gray | Copper Alloy |
Description
General part information
T2060122201 Series

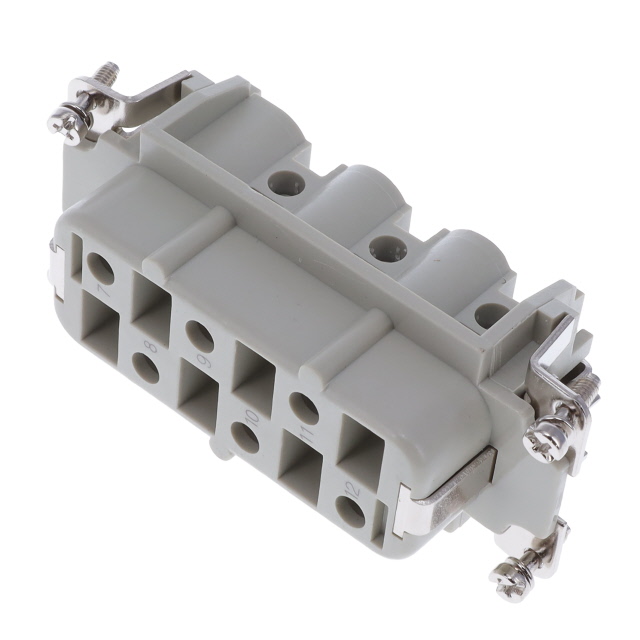

Female Insert Gray 6+Ground Position Screw
