TSA89-E1N1-S36

Active

ConductRF

CBL ASSY 3.5MM-NTYPE PLG-PLG 36"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TSA89-E1N1-S36

Active

ConductRF

CBL ASSY 3.5MM-NTYPE PLG-PLG 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 390.55
		5	$ 367.45
		10	$ 346.45
		25	$ 311.80
		50	$ 297.10
		100	$ 283.45
		250	$ 276.10
		500	$ 268.75
		1000	$ 264.55

Description

General part information

TSA89 Series

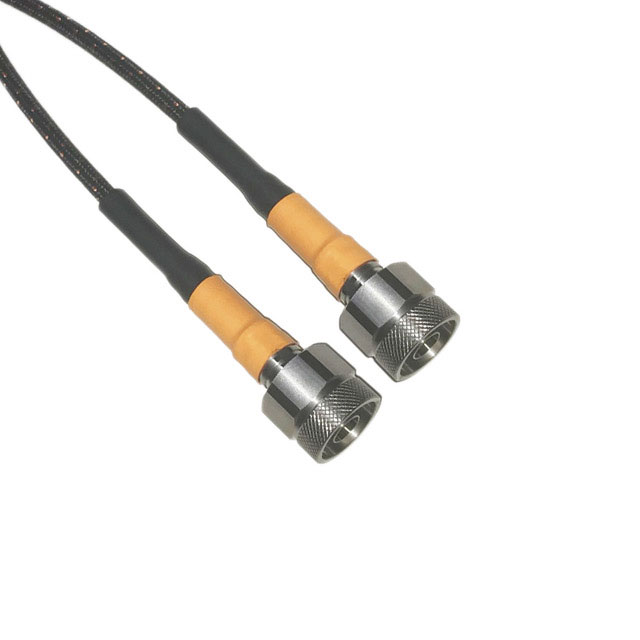

Cable Assembly Coaxial 3.5mm to N-Type 4.95mm OD Coaxial Cable 36.00" (914.40mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSA89-E1N1-S36	TSA89 Series

1st Connector	3.5mm Plug	SMA Plug, 2.92mm Plug, 3.5mm Plug
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Male	Male
2nd Connector	N-Type Plug	N-Type Plug, SMA Plug
2nd Connector	-	2.92 - 3.5 mm
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Impedance	50 Ohms	50 Ohms
Cable Type	4.95mm OD Coaxial Cable	4.95mm OD Coaxial Cable
Color	Black	Black
Connector Impedance	50 Ohms	50 Ohms
Features	Shielded	Shielded
Frequency - Max [Max]	18 GHz	18 - 40 GHz
Length	91.44 cm	1.5 - 91.44 cm
Length	36 in	5 - 36 in
Length	-	5 ft
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Impedance	50 Ohms	50 Ohms
Style	N-Type	N-Type to N-Type, SMA to SMA, N-Type
Style	3.5 mm	3.5 mm
Style	-	2.92 - 3.5 mm
Style	-	2.92 - 3.5 mm

TSA89 Series

CBL ASSY NTYPE PLUG TO PLUG 36"

Part	1st Connector Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Frequency - Max [Max]	Style	2nd Connector	Connector Impedance	Cable Type	Cable Impedance	Features	Color	2nd Connector Mounting Type	2nd Contact Gender	Overall Impedance	1st Contact Gender	Length	1st Connector	2nd Connector	Style [Min]	Style [Max]	Style
ConductRF TSA89-N1N1-S36	Free Hanging (In-Line)	-55 °C	125 °C	91.44 cm	36 in	18 GHz	N-Type to N-Type	N-Type Plug	50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male
ConductRF TSA89-N1N1-S60	Free Hanging (In-Line)	-55 °C	125 °C	1.5 m	5 '	18 GHz	N-Type to N-Type	N-Type Plug	50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male	5 ft
ConductRF TSA89-S1S1-S60	Free Hanging (In-Line)	-55 °C	125 °C	1.5 m	5 '	27 GHz	SMA to SMA	SMA Plug	50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male	5 ft	SMA Plug
ConductRF TSA89-D1D1-S60	Free Hanging (In-Line)	-55 °C	125 °C	1.5 m	5 '	40 GHz			50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male	5 ft	2.92mm Plug	2.92 mm	2.92 mm	2.92 mm
ConductRF TSA89-E1E1-S36	Free Hanging (In-Line)	-55 °C	125 °C	91.44 cm	36 in	32 GHz			50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male		3.5mm Plug	3.5 mm	3.5 mm	3.5 mm
ConductRF TSA89-E1N1-S36	Free Hanging (In-Line)	-55 °C	125 °C	91.44 cm	36 in	18 GHz	N-Type	N-Type Plug	50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male		3.5mm Plug				3.5 mm
ConductRF TSA89-D1D1-S36	Free Hanging (In-Line)	-55 °C	125 °C	91.44 cm	36 in	40 GHz			50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male		2.92mm Plug	2.92 mm	2.92 mm	2.92 mm
ConductRF TSA89-E1E1-S60	Free Hanging (In-Line)	-55 °C	125 °C	1.5 m	5 '	32 GHz			50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male	5 ft	3.5mm Plug	3.5 mm	3.5 mm	3.5 mm
ConductRF TSA89-S1S1-S36	Free Hanging (In-Line)	-55 °C	125 °C	91.44 cm	36 in	27 GHz	SMA to SMA	SMA Plug	50 Ohms	4.95mm OD Coaxial Cable	50 Ohms	Shielded	Black	Free Hanging (In-Line)	Male	50 Ohms	Male		SMA Plug
