ND35B00
ActiveDelta Electronics

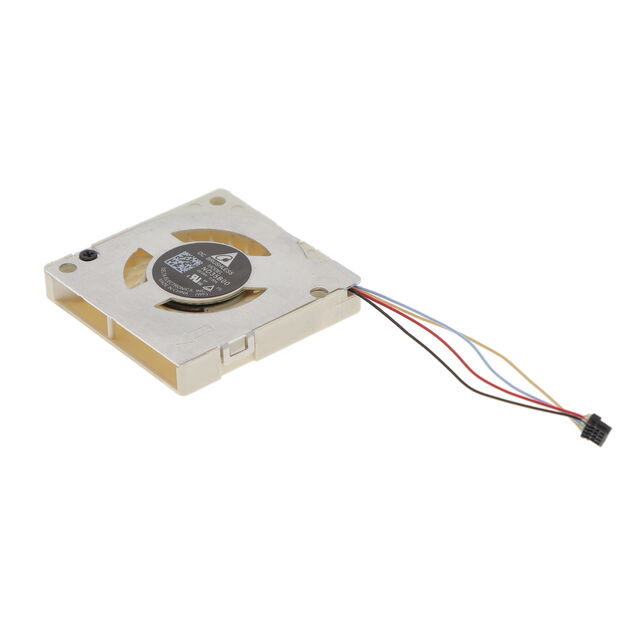

FAN BLOWER 30X4.5MM 5VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
ND35B00
ActiveDelta Electronics
FAN BLOWER 30X4.5MM 5VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ND35B00 |
|---|---|
| Air Flow | 0.031 m³/min |
| Air Flow | 1.1 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Sleeve |
| Current Rating (Amps) | 100 mA |
| Fan Type | Blower |
| Lifetime @ Temp. | 30000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 49.5 dB |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 0.5 W |
| RPM | 10500 RPM |
| Size / Dimension [x] | 30 mm |
| Size / Dimension [z] | 30 mm |
| Static Pressure | 0.409 in H2O |
| Static Pressure | 102 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated | 5 V |
| Voltage Range [Max] | 5.5 V |
| Voltage Range [Min] | 4.5 V |
| Weight | 0.011 lb |
| Weight | 4.99 g |
| Width [y] | 4.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.71 | |
| 10 | $ 14.99 | |||
| 25 | $ 13.57 | |||
| 50 | $ 12.50 | |||
| 176 | $ 11.21 | |||
| 352 | $ 10.35 | |||
| 528 | $ 9.64 | |||
Description
General part information
ND35B00 Series
Fan Blower 5VDC Square - 30mm L x 30mm H Sleeve 1.1 CFM (0.031m³/min) 4 Wire Leads
