159250-2002

Active

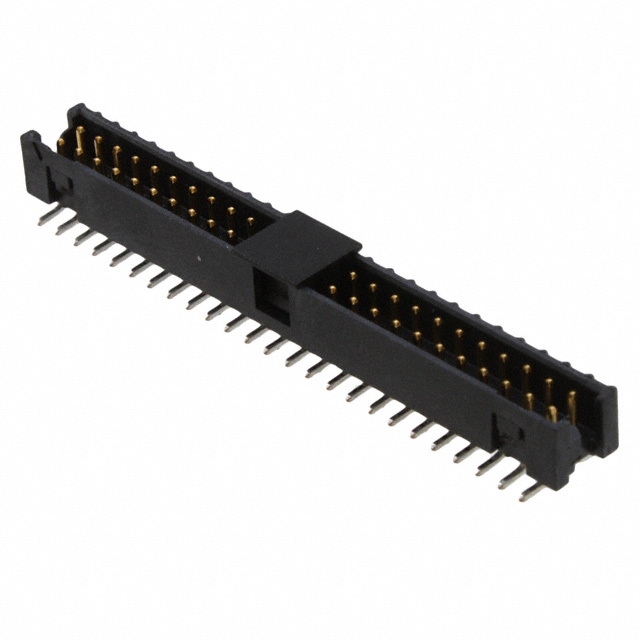

CONN HEADER SMD 50POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

159250-2002

Active

CONN HEADER SMD 50POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	159250-2002	159250 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	3.61 mm	3.61 mm
Contact Length - Mating	0.142 in	0.142 in
Contact Length - Post	-	2.84 mm
Contact Length - Post	-	0.112 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Detent Lock	Detent Lock
Features	Keying Slot	Keying Slot
Insulation Color	Black	Black
Insulation Height	5.33 mm	5.33 - 6.13 mm
Insulation Height	0.21 in	0.21 - 0.241 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	150 VDC	150 VDC

159250 Series

CONN HEADER SMD 50POS 2MM

Part	Fastening Type	Connector Type	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Insulation Color	Contact Finish - Mating	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Termination	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Number of Positions	Contact Material	Shrouding	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)	Contact Length - Post	Contact Length - Post
3M 159250-2002	Detent Lock	Header	5.33 mm	0.21 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Surface Mount	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A
3M 159250-5002	Detent Lock	Header	6.13 mm	0.241 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Through Hole, Right Angle	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A	2.84 mm	0.112 in
3M 159250-6002	Detent Lock	Header	5.33 mm	0.21 in	3.61 mm	0.142 in	Black	Gold	Board to Cable/Wire	15 µin	0.38 µm	Male Pin	150 VDC	0.079 in	2 mm	Solder	All	2	Tin	0.079 in	2 mm	Through Hole	50	Copper Alloy	Shrouded - 4 Wall	Square	105 ░C	-55 °C	UL94 V-0	200 µin	5.08 µm	Keying Slot	1.25 A	2.84 mm	0.112 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

159250 Series

Connector Header Surface Mount 50 position 0.079" (2.00mm)
