M2022WBW01

Obsolete

NKK Switches

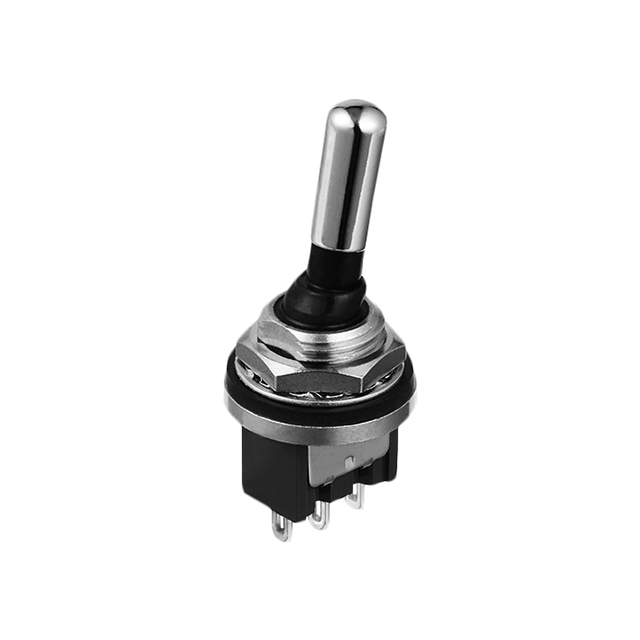

SWITCH TOGGLE DPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE DPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2022WBW01

Actuator Length [x]	20 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Waterproof Boot
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Type	Voltage Rating - DC	Ingress Protection	Voltage Rating - AC	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Switch Function	Circuit	Termination Style	Features	Actuator Length [x]	Current Rating (Amps)	Bushing Thread	Bushing Thread	Panel Cutout Dimensions [diameter]	Actuator Material
NKK Switches M2022WBW01	Standard Round	30 V	IP67 - Dust Tight Waterproof	125 V	25000 Steps	-30 ░C	85 °C	Non-Illuminated	On-On	DPDT	Solder Lug	Waterproof Boot	20 mm	4 A 6 A	M12	1 x 1	12.5 mm	Brass Chrome Plated
