8280-5PG-522

Active

Conxall/Switchcraft

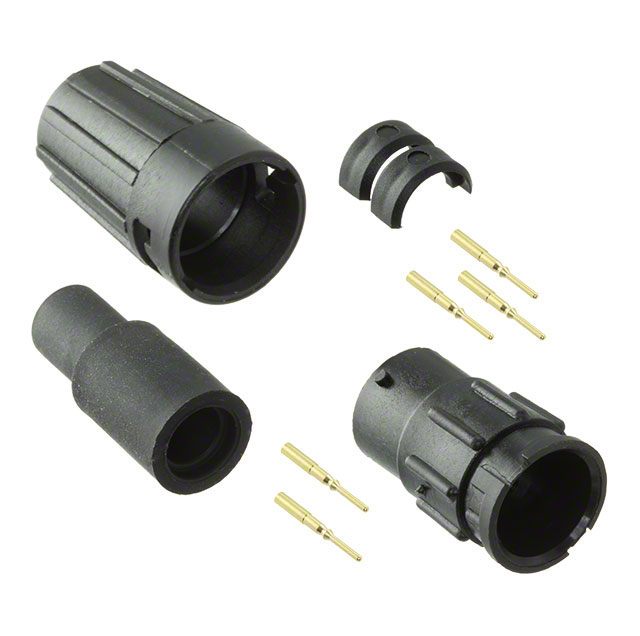

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8280-5PG-522

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.04
		10	$ 6.33

Description

General part information

8280-5PG Series

5 Position Circular Connector Receptacle, Male Pins Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8280-5PG-522	8280-5PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.13 - 0.17 in
Cable Opening	-	3.3 - 4.32 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening	-	5.84 mm
Cable Opening [Max] [diameter]	6.35 mm	6.35 mm
Cable Opening [Max] [diameter]	0.25 in	0.23 - 0.25 in
Cable Opening [Min] [diameter]	0.22 in	0.21 - 0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.33 - 5.59 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

8280-5PG Series

CONN RCPT MALE 5POS GOLD CRIMP

Part	Backshell Material, Plating	Contact Finish - Mating	Ingress Protection	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Color	Orientation	Shielding	Primary Material	Mounting Type	Voltage Rating	Fastening Type	Current Rating (Amps)	Applications	Features	Connector Type	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 8280-5PG-522	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass	6.35 mm	0.25 in	0.22 in	5.59 mm	Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle
Conxall/Switchcraft 8280-5PG-315	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass					Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle	0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 8280-5PG-513	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass					Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle	0.13 in, 0.15 in	3.3 mm, 3.81 mm
Conxall/Switchcraft 8280-5PG-318	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass					Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle			4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 8280-5PG-311	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass					Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle							2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 8280-5PG-321	Nylon, Polyamide (PA)	Gold	Weathertight	Crimp	115 °C	-40 °C	Brass		0.23 in	0.21 in	5.33 mm	Black	Keyed	Unshielded	Plastic	Free Hanging (In-Line)	600 V	Bayonet Lock	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Backshell	Male Pins, Receptacle										5.84 mm
