L77TSAH15SOL2RM8

Active

Amphenol ICC (Commercial Products)

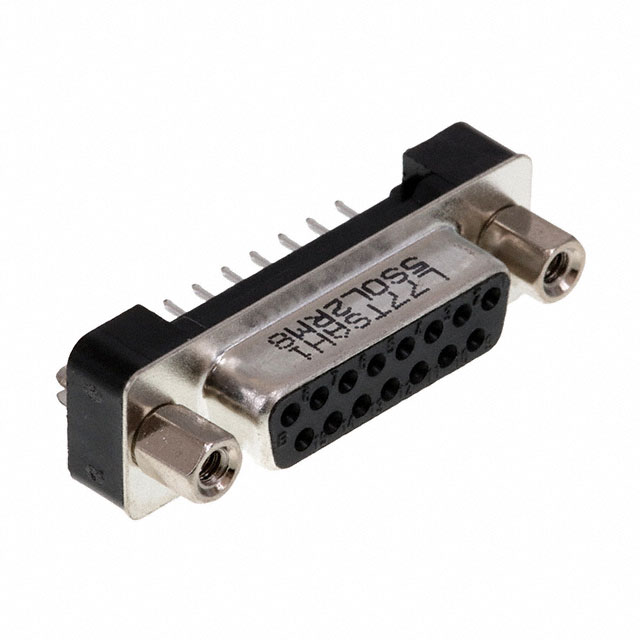

CONN D-SUB RCPT 15POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 15POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L77TSAH15SOL2RM8

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder
Voltage Rating	600 V

Part	Number of Rows	Contact Finish	Number of Positions	Material Flammability Rating	Flange Feature	Current Rating (Amps)	Termination	Contact Material	Dielectric Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Contact Finish Thickness	Voltage Rating	Mounting Type	Connector Style	Shell Size, Connector Layout	Contact Type
Amphenol ICC (Commercial Products) L77TSAH15SOL2RM5	2	Gold	15	UL94 V-0	4-40 Board Side	5 A	Solder	Copper Alloy	Thermoplastic Glass Filled	Receptacle Female Sockets	-55 °C	125 °C	Stamped	Flash	600 V	Through Hole	D-Sub	2	Signal
Amphenol ICC (Commercial Products) L77TSAH15SOL2RM5C309	2	Gold	15	UL94 V-0	4-40 Board Side	5 A	Solder	Copper Alloy	Thermoplastic Glass Filled	Receptacle Female Sockets	-55 °C	125 °C	Stamped	Flash	600 V	Through Hole	D-Sub	2	Signal
Amphenol ICC (Commercial Products) L77TSAH15SOL2	2	Gold	15	UL94 V-0	4-40 Board Side	5 A	Solder	Copper Alloy	Thermoplastic Glass Filled	Receptacle Female Sockets	-55 °C	125 °C	Stamped	Flash	600 V	Through Hole	D-Sub	2	Signal
Amphenol ICC (Commercial Products) L77TSAH15SOL2C309	2	Gold	15	UL94 V-0	4-40 Board Side	5 A	Solder	Copper Alloy	Thermoplastic Glass Filled	Receptacle Female Sockets	-55 °C	125 °C	Stamped	Flash	600 V	Through Hole	D-Sub	2	Signal
Amphenol ICC (Commercial Products) L77TSAH15SOL2RM8	2	Gold	15	UL94 V-0	Female Screwlock (4-40) Mating Side	5 A	Solder	Copper Alloy	Thermoplastic Glass Filled	Receptacle Female Sockets	-55 °C	125 °C	Stamped	Flash	600 V	Through Hole	D-Sub	2	Signal
