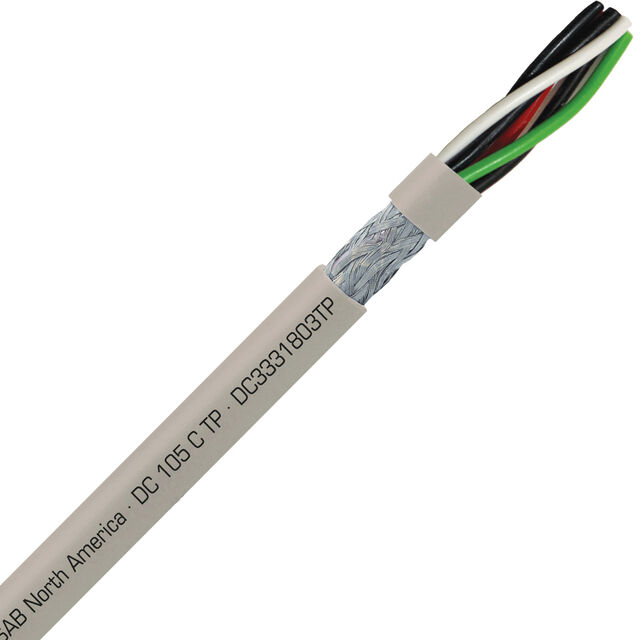

DC3331803TP

Active

SAB North America

MULTI-PAIR 6COND 18AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 6COND 18AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3331803TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.439 in
Jacket (Insulation) Diameter [diameter]	11.15 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	18 AWG

MULTI-PAIR 6COND 18AWG GRY 1=1FT

Part	Number of Conductors	Features	Operating Temperature [Min]	Operating Temperature [Max]	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Jacket (Insulation) Material	Voltage	Shield Material	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Conductor Material	Jacket Color
SAB North America DC3331803TP	6	Oil Resistant	-25 °C	105 ░C	Enter Number of Feet in Order Quantity	0.439 in	11.15 mm	Multi-Pair	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	Copper, Tinned	Braid, Foil	19	30 AWG	18 AWG	Copper, Tinned	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Gray 18 AWG Foil, Braid Enter Number of Feet in Order Quantity
