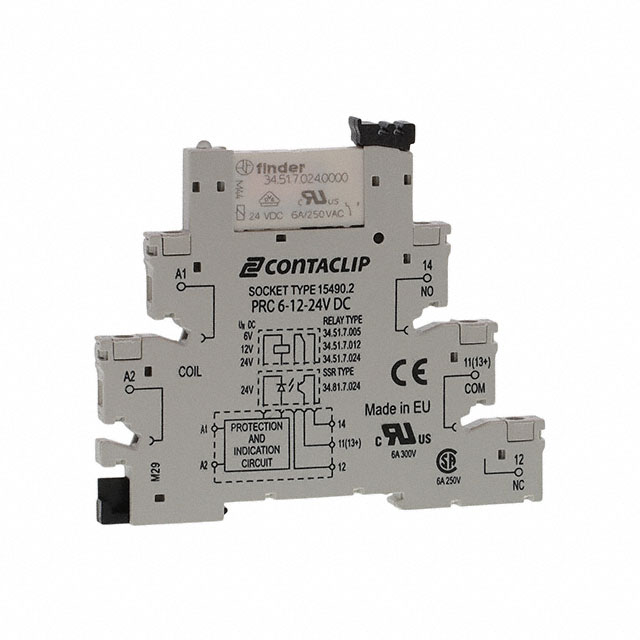

15515.2

Active

Conta-Clip, Inc.

RELAY GEN PURPOSE SPDT 6A 24V

Search across all available documentation for this part.

Active

Conta-Clip, Inc.

RELAY GEN PURPOSE SPDT 6A 24V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 24V

Part	Coil Type	Operate Time	Termination Style	Contact Form	Release Time	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Contact Material	Coil Voltage	Contact Rating (Current)	Mounting Type	Relay Type	Switching Voltage [Max]	Must Operate Voltage	Load - Max Switching [Max]
Conta-Clip, Inc. 15515.2	Non Latching	5 ms	Screw Terminal	SPDT (1 Form C)	6 ms	-40 °C	70 °C	1.2 VDC	Silver Nickel (AgNi)	24 VDC	6 A	DIN Rail	General Purpose	400 VAC	19.2 VDC	2400 VA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay SPDT (1 Form C) 24VDC Coil DIN Rail
