88106 0081000

Active

Belden Inc.

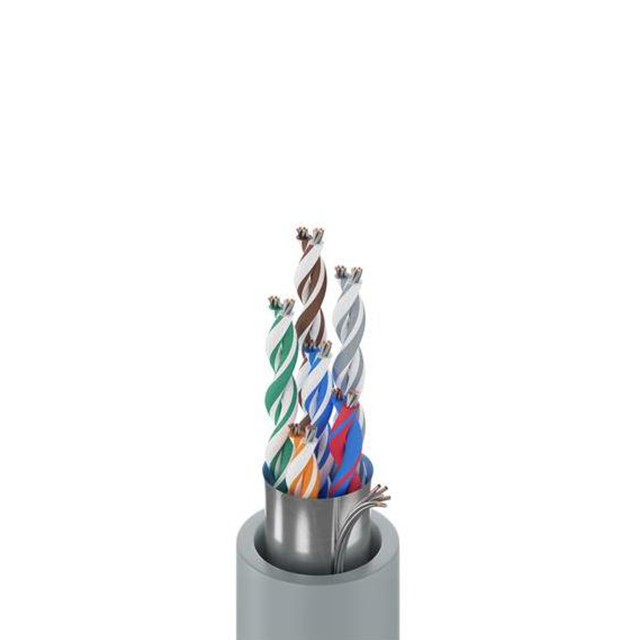

MULTI-PAIR 12CON 24AWG GRY

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12CON 24AWG GRY

Technical Specifications

Parameters and characteristics for this part

Specification	88106 0081000

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.293 in
Jacket (Insulation) Diameter [diameter]	7.44 mm
Jacket (Insulation) Material	Polyvinylidene Fluoride (PVDF), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-20 C
Ratings	UL Style CMP
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Insulation	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Shield Coverage	Voltage	Number of Conductors	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Usage	Conductor Material	Features	Ratings	Length	Length
Belden Inc. 88106 008500	500 '	152.4 m	24 AWG	0.293 in	7.44 mm	Aluminum	150 °C	-20 C	Foam Fluorinated Ethylene-Propylene (FFEP)	Multi-Pair	32 AWG	7	Gray	100 %	300 V	12	Foil	0.356 mm	0.014 in	Plenum Polyvinylidene Fluoride (PVDF)	Computer	Copper Tinned	Drain Wire	UL Style CMP
Belden Inc. 88106 0081000			24 AWG	0.293 in	7.44 mm	Aluminum	150 °C	-20 C	Foam Fluorinated Ethylene-Propylene (FFEP)	Multi-Pair	32 AWG	7	Gray	100 %	300 V	12	Foil	0.356 mm	0.014 in	Plenum Polyvinylidene Fluoride (PVDF)	Computer	Copper Tinned	Drain Wire	UL Style CMP	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 21.80

General part information

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
