1730625

Active

Phoenix Contact

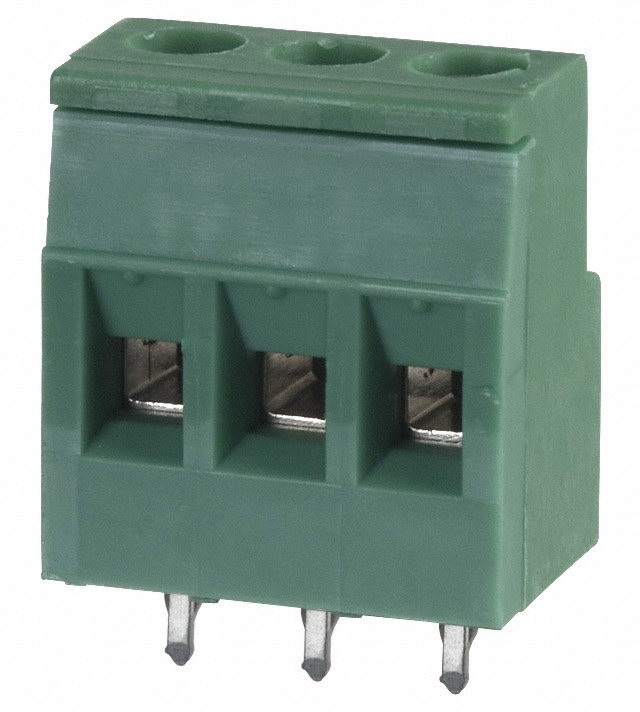

FIXED TERMINAL BLOCKS 3P 5.08MM 90DEG

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS 3P 5.08MM 90DEG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fixed Terminal Blocks 4P 5.08mm 90DEG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Fixed Terminal Blocks 4P 5.08mm 90DEG

Part	Mounting Type	Current	Voltage	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Positions Per Level	Housing Material	Mating Orientation	Screw Thread	Number of Levels	Color	Pitch [x]	Pitch [x]	Wire Termination	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 1897759	Press Fit	10 A	300 V	2.2 Lb-In	0.25 Nm	0.22 Nm	1.9 Lb-In	8	Polyamide (PA), Nylon	Horizontal with Board	M2	1	Green	0.2 in	5.08 mm	Screw - Rising Cage Clamp	14 AWG	30 AWG
Phoenix Contact 1730638	Through Hole	10 A	300 V	5.3 Lb-In	0.6 Nm	0.5 Nm	4.4 Lb-In	4	Polyamide (PA), Nylon	Horizontal with Board	M3	1	Green	0.2 in	5.08 mm	Screw - Rising Cage Clamp	12 AWG	30 AWG
Phoenix Contact 1730625	Through Hole	10 A	300 V	5.3 Lb-In	0.6 Nm	0.5 Nm	4.4 Lb-In	3	Polyamide (PA), Nylon	Horizontal with Board	M3	1	Green	0.2 in	5.08 mm	Screw - Rising Cage Clamp	12 AWG	30 AWG
